Basic Info.
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Toilet Paper Type
Without Core
Transport Package
Wooden Box Packing
Specification
Please consult our sales for more details
Origin
No.20 Changjiang Load,Sanshan New Town Nanhai Fosh
Product Description

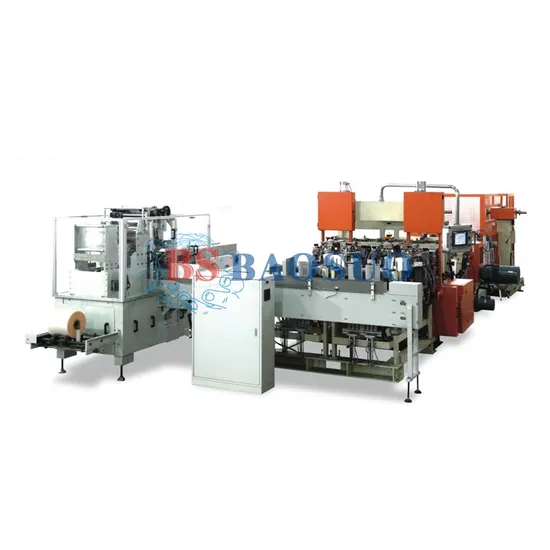

YC-PL Napkin Paper Manufacturing Line
Min. Order: 1
Payment term: T/T
Delivery time: 2 ~ 6 months
Shipping port: Foshan
YC-PL |
Jumbo Roll Width | 240 ~ 800 mm |
Design Speed | 500 m/min |
Folding Type | Mechanical Folding |
Open Size | 240 × 240 ~ 340 × 340 |
Folded Size | 120 × 120 ~ 170 × 170 ±2 mm |
Jumbo Roll Diameter | ≤ φ2000 mm |
Jumbo Roll Core Inside Diameter | Φ76.2 mm (For other size please special) |
Embosser System | Steel to leather roll, steel to steel |
Web Basic Weight (gsm) | Single layer l5 ~ 30 g/m², 1 ~ 3 Layer |
Automatic Transfer Device |
Transfer Function | Servo control and photoelectric control lead to automatic transfer. |
Sheets Amount Tracking | High-accuracy servo encoder |
Transfer Sheet Count Adjustment | Seton control panel |
Sheet Count Range | 30 ~ 150 sheets |
Transfer speed | Maximum 15 times/min/line |
Band Saw Cutting Device |
Band Saw Size | 4280 * 30 * 0.8 |
Grinding Wheel Size | 125 * 20 * 20 / 100 # |
Band Saw Sharpening | Motor-driven.parameter can be set on control panel |
Sharpen Dust Suction System | Dust suction system central zed treatment Sharpen |
Packing Machine Parameters |
Range of Application | Disposable paper, such as facial tissue, towel, napkin |
Packing Material Supply Mode | ASF-typed fully automatic intelligent material supply |
Packing speed | ≤ 70 packs/min |
Packing Type | 3D wrapping, sealing on both sides |
Paper Length Scope | 100 mm ~ 200 mm |
Paper Height Scope | 40 mm ~ 100 mm |
Paper Width Scope | 95 mm ~ 105 mm |
Overall Size | Length 5370 mm, Width 3630 mm, Height 1850 mm |
Weight | <= 2500 KG |
Maximum Diameter of Film Roll | 450 mm |
Core Diameter of Film Roll | 75 mm |
Maximum Width of Film | 340 mm |
Film Type | 0.035 ~ 0.05 mm CPP two side sealable film, OPP / CPP double-layer composite film |
Embosser Device |
Embosser Speed Adjustment | Set on control panel |
Embosser Roll Material | High-strength alloy steel with special treatment |
Pressurizing Mode | Hydraulic |
Lubrication Mode | Gear oil lubrication |
Production Speed >= 450 m/min, 15 times/min/line; Multiple National patents; Fully automatic, all servomotor folding; Automatic counting, 100% accuracy; Double CPU processing, closed cycle feed back control; Stable running, high efficiency productivity; Automatic last sheet folding (outside the machine); Mechanical, electrical and photoelectric control technology, automatic inspection and feedback. About us
Brand BAOSUO |
Number of Employees 501-1000 People |
Annual sales More than US$50 Million |
Established in 1989 |
Baosuo Enterprise., established in 1989, is a well-known corporation which specializes in machinery for tissue. We uphold the business strategy of basing on domestic market and going global, which helps to lay the foundation for building our global well-known brand. Our products include tissue making machines, tissue converting machines, tissue packing machines and electric intelligent systems. We are dedicated to providing the best tissue production turnkey solution and first-class service from design, manufacturing to installation.
Factory Exhibition Activities 1.The World Tissue Exhibition
2.Tissue World São Paulo
3.The 26th International Paper Industry Exhibition
FAQ 1.I am new in this business, what kind of information I need for start the project? Production requirement in details, such as products type, capacity, material size and so on.
2.I wan to produce toilet roll and kitchen towel, which machine is proper for me? We have different models based on capacity and specification, please provide us the detailed requirement, or get in contact with sales representatives for quotation.
3.What is the price of the machine? Machine price is based on confirmed machine model and specification, our sales representative will guide you the proper machine for you requirement, and offer quotation accordingly.
4.How can I get in contact with the sales representatives? Please contact with us via email, or leave message on website, our sales representatives will follow on your order on time.
5.How can I install the machine? We offer online installation instruction, or send technician for guiding installation and operation training based on requirement.
6.What about the after sale service and spare parts supply? Our after sales team will support your with on time suggestion and origin spare parts supply.
7.What is the guarantee time of the machine? Machine guarantee for one year after the acceptance.
>>
