Diesel Fuel Common Rail High Pressure Piezoelectric Injector Test Bench

US$8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JZ-206
Condition
New
Standard
Standard
Selling Point
Coding System
Test Range
Euro 3---Euro 6
Cr Pump Motor
2.3 Kw
Power
220V 50/60Hz
Rail Pressure
0-2700 Bar
Speed
0-1000 Rpm
Metering Way
Flow Sensor
Rail Pressure Precision
5 Bar
Filter Precision
< 5 Um
Tank Volume
8 L
Fuel Temperature
38-42 ′c
Net Weight
113 Kg
Transport Package
Wooden Case or Strong Carton
Specification
750*790*820 mm
Trademark
JZHY
Origin
Wuxi City, Jiangsu, China
HS Code
903120009
Production Capacity
1500 Pieces/Year

Product Description

Product Introduction

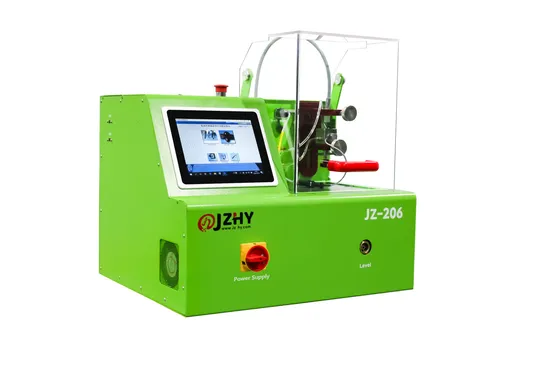

JZ-206 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4, Euro-5, Euro-6 injectors.
It can test thousands of injectors. The experimental data are complete.


Standard Functions Test commom rail injector
Test smart injector
Test pieoelectric injector
Generate IQA code
Fuel tank oil kevel lower limit alarm
Equipped multiple high-precision filters
Test oil automactic heating/cooling control
Real-time display injection/retun curves
Optional Functions Test 4-pin injector
Generate6,7,8,9,10-digit IQA code
Generate 16,24,30-digit QR code
Generate C2i,C3i correction code
Generate piezo IMA,ISA code
Generate VDO-IIC code
Generate XPI correction code
Our Advantage
Hardware advantage
1. Motor power is 2.6 KW
2. Air-cooled heat dissipation kit
3. Metering valve detect the fuel flow
4. Flow sensor
5. Equipped with genuine DRV
6. Equipped with genuine CP3 pump
7. Equipped with genuine common rail tube
8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection)
9. Short-circuit protection, ground protection, over-pressure protection during the testing
10. Equipped frequency converter to achieve testing function under different speed conditions
11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life
Software advantage
1. Injection timing responding sensing system of the injectors
2. Coding system, can generate different compensation codes and correction codes
3. Measurement system of resistance and inductance of injector's solenoid valve
4. More than 3000 test data used for different brands injectors calibration
5. Data backup, system software and database upgrade free charge all the time by remote
6. Electronic measuring system, automatic testing the fuel quantity of all working conditions, and generate report after testing
7. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing
8. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing

Product Details
Technical Parameters
Technical Parameters
CR Pump Motor 2.3 KW
Main Output 380V 50/60HZ
CR Pressure 0~2700 Bar
Rail Pressure Precision ±5 Bar
Diesel Tank Volume 8 L
Fuel Temperature 40±2ºC
Flow Metering Unit 0.008-2L/min
Control Return Voltage DC12V DC 24V
ECU Internal Boost 0-200VDC (max)
Filter Precision < 5μm
Gross Weight 144 kg
Packing Size 750×790×820 mm
Nozzle Flow Sensor Gear Flow Sensor
Language English, Spanish, Russian,etc
Material Metal Plate
Painting Powder Painting, Durable
Color Dark Blue/ Green (can be customized)
MOQ 1 Piece
Shipping Packing Wooden Board
