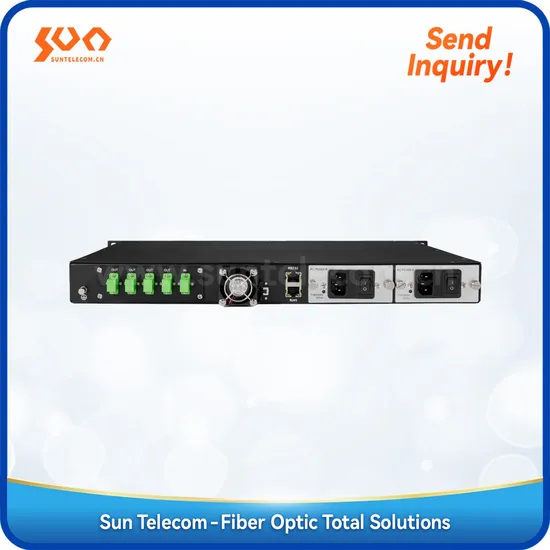

1550nm Erbium Doped Fiber Optic Amplifier EDFA

US$400.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SUN-FA
Certification
CE, ISO, RoHS
Condition
New
Total Output Power (dBm)
13 ~ 27/28 ~ 41
No. of Output Ports
1/2/4/8/16/32/64
Each Port Output Power (dBm)
13 ~ 27
Optical Connector
Sc/APC, FC/APC (Optional)
Power Supply (V)
AC: 90 ~ 265 DC: -48
Working Temperature (°c)
-20 ~ +85
Wavelength (Nm)
1535~1565
Return Loss (dB)
≥ 45
Transport Package
Paper Box
Specification
483 (L) x 380 (W) x 1/2U (H)
Trademark
SUN & logo
Origin
China
HS Code
8517622990
Production Capacity
3, 000 Sets/Mth

Product Description

Product Description Sun Telecom's SUN-FA series of fiber amplifier uses a sophisticated high-efficiency radiator at the optimum temperature to extend the working life of the product. It uses America OFS erbium-doped/Erbium-Ytterbium-Doped fiber and JDSU, Bookham or Furukawa pump laser to improve the stability of the product.

Features VFD or LED displays the working conditions and trouble alarm RJ45 port for SNMP remote management RS232 for local management
Application FTTH solutions Cable television distribution network EOC, etc.
Specifications
Parameters Specification
Model SUN-EDFA SUN-EYDFA
Total Output Power (dBm) 13 ~ 27 28 ~ 41
No. of Output Ports 1/2/4 8/16/32/64
Each Port Output Power (dBm) 13 ~ 27 16 ~ 23
Input Power (dBm) -10 ~ 10 -8~10
Wavelength (nm) 1535~1565 1545~1565
Output Power Stability (dB) ≤ ±0.2
Bias Oscillation Sensitivity (dB) < 0.2
Bias Oscillation Dispersion (PS) < 0.5
Return Loss (dB) ≥ 45
Optical Connector FC/APC or SC/APC
Noise Ratio (dB) ≤ 5.0 ≤ 6.0
Interface RJ45 (SNMP), RS232 or RS485
Power (W) 50
Operation Voltage (V) AC: 90 ~ 265
DC: -48
Working Temperature (°C) -20 ~ +85
Dimensions (mm) 483 (L) x 380 (W) x 44.5 (H) 483 (L) x 380 (W) x 89 (H)
Weight (kg) 5 7

Standard Package
No. Name Unit Quantity
1 Fiber Amplifier set 1
2 Power Adapter piece 1 or 2

Ordering Information
Example: SUN-EDFA-4P19-AC
Erbium-Doped Fiber Amplifier; Laser wavelength: 1550nm; Optical interface: SC/APC or FC/APC optional; Four output ports, each port output power: ≥19dBm; Single power supply: 90~265V
