Factory Price 1500 Bottles Per Hour Plastic Bottle Making Machine

Product Description

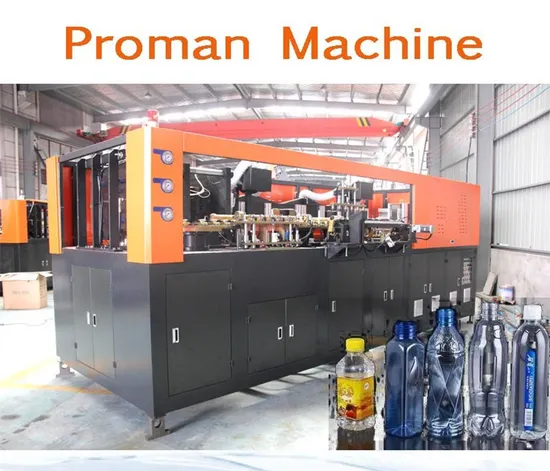

Factory price 1500 bottles per hour plastic bottle making machine
Product Introduction
1. Stable performance with advanced PLC.2. Automatic preform conveyer to save human cost.3. Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.4. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.5. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.6. Introduce the FESTO air cylinder to avoid contamination and noise.7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.8. Strong clamping force with high pressure and double crank links to lock the mould.
9. Two ways of operating: Automatic and manual.
10. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
11. Contamination is avoided for the bottle body.
12. Ideal effect of the chilling with the chilling system.
13. Easy installation and starting
14. Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.



1. Low costhigh efficiencyeasy operation and maintenance, etc, profited from the fully automatic technological process.
2.Ideal cooling system make the finished bottles without any flaws.
3. Easy for you to installtest and start up.
4. Low rejection rate: Less than 0.2 percent.
5.Customized bottle mold design.
Technical Parameter

Model	Item	PM-A2	PM-A4	PM-A6	PM-A8
Productivity	Depend on bottle design	2400-3000PCS/H	3500-4500PCS/H	5500-6500PCS/H	8000-9000PCS/H
Product type	Volume	0.1-2.0L	0.1-2.0L	0.1-2.0L	0.1-2.0L
	Body diameter	≤100mm	≤100mm	≤100mm	≤100mm
	Height	≤310mm	≤310mm	≤330mm	≤330mm
	Neck diameter	≤38mm	≤38mm	≤38mm	≤38mm
Mold	Cavity	2	4	6
	Mold thickness	240mm	240mm	240mm	240mm
	Mold volume	260*240*370mm	510*240*360mm	640*240*360mm	640*240*360mm
Main machine power	Electrical source power	380V/220V 50/60HZ	380V/220V 50/60HZ	380V/220V 50/60HZ	380V/220V 560/60HZ
		3Phase	3Phase	3Phase	3Phase
	Rated power	25kw	49kw	73kw	97kw
	Really use power	6.5kw	13kw	25kw
Air system	HP air compressor	1.6m³/min3.0Mpa	3.0m³/min3.0Mpa	6.0m³/min3.0Mpa	6.0m³/min3.0Mpa
	LP air compressor	1.0m³/min1.0Mpa	1.6m³/min1.0Mpa	2.0m³/min1.0Mpa	23.0m³/min1.0Mpa
	Air tank	0.6m³3.0Mpa	0.6m³3.0Mpa	1.0m³3.0Mpa	1.0m³3.0Mpa
	Air dryer	1.0m³/min3.0Mpa	2.0m³/min3.0Mpa	6.0m³/min3.0Mpa	6.0m³/min3.0Mpa
Cooling water	Water Chiller	3HP	3HP	5HP	8HP
Machine	Size(L*W*H)	1900*1280*1930mm	1900*1860*1930mm	4100*1400*1800mm	4100*2200*1800mm
	Weight	2000kg	3600kg	4200kg	5800kg
Preform unscrambler	Size(L*W*H)	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm
	Weight	500kg	500kg	500kg	500kg

Semi type machine:

		UNIT	PM-12	PM-8Y	PM-1500	PM-1-20
	Theoretical output	Pcs/h	500	900	1800	90
Product	Volume	L	5.0	2.0	2.0	20
	Max. height	mm	360	360	360	550
	Max. diameter	mm	120	105	105	300
Mould	Number of cavities	/	1	2	4	1
	Mould piate dimension(L*H)	mm	490*470	490*405	490*405	620*620
	Mould thickness	mm	250	220	220	380
	Mould opening stroke	mm	220	180	180	380
Electrical	Power	/	220_380V/50_60HZ	220_380V/50_60HZ	220_380V/50_60HZ	220_380V/50_60HZ
	Total power	KW	11	11	21	36
	Heating power	KW	10	10	20	37
Machine	Main body dimension(L*W*H)	m	1.5*0.65*2.0	1.5*0.65*2.0	1.5*0.65*2.0	2.1*0.75*1.6
	Main body weight	kg	600	550	550	900
	Pre-heater(L*W*H)	m	1.5*0.65*1.5	1.4*0.65*1.5	1.8*0.65*1.5	2.

Brand Name

Name	Brand	Original
Cylinder	SMC	Japan
Magnetic valve	SMC	Japan
Photoelectric switch	XINLV	CHINA
Touch screen	MCGS	CHINA
PLC	Mitsubishi	Japan
Transducer	SMC	Japan
servo motor	HUICHUANG	CHINA

Factory show

FAQ
1.How to tell us your enquiry?
:You can contact us by email, phone call, fax, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.
2.Are you manufacturer or trading company ?
We are industrial manufacturer, which locates in Zhangjiagang city over 18years .
3.Where is your factory?
Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
4. Do you have any technical supports with your Beverage Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
We Warmly Welcome Customers All Over The World To Our Company.If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.

---
