22 Inch Bicycle Tire Opener

US$1,456.00-2,264.00 1 A (machine) (MOQ)

Basic Info.

Model NO.
xk-560
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
New Materials
Environmental Protection
Hardness
Rigidity
After-Sale Protec
After-Sale Protec
Mill Supply Wholesalers
Stable Performance
Free Debugging
Technical Assistance
Cable Works
Silica Gel Industry
Shoe Factory
Hose Factory
Simplicity of Open
No Corrosion, No Deformation
Recycled Rubber
Conveyor Belt
Conveyor Belt
Seal
Transport Package
Pallet Gluing Machine
Specification
1000kg
Trademark
Junlin
Origin
Qingdao, Shandong, China
HS Code
8477800000
Production Capacity
600 Sets/Year

Packaging & Delivery

Package Size
650.00cm * 165.00cm * 200.00cm
Package Gross Weight
6500.000kg

Product Description

Our company mainly produces open rubber mixing machines, rolling machines, film cooling lines, flat vulcanizing machines, automatic rubber mixing lines, recycled rubber equipment and their accessories, If you have any needs in this regard, feel free to leave me a message at any time.
Detailed Photos
Applicable for various rubber moulding production,PLC control & touch screen,Auto mold closing, air exhaust, temperature control, timing setting,Custom mold push out system,Well-sealed hydraulic cylinder with precise,grinding and finishing,Stable hydraulic pressure station

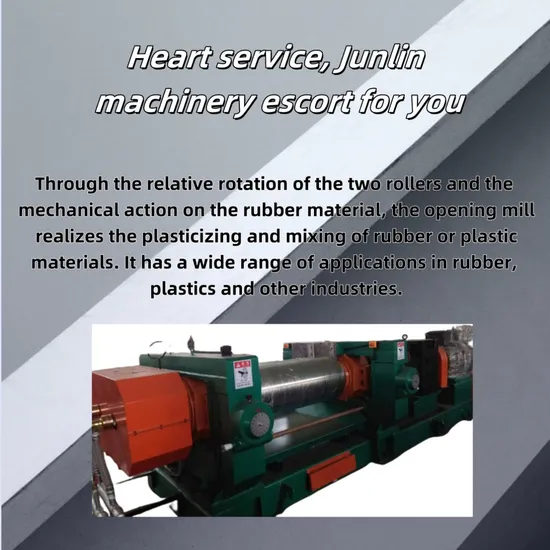

The main working parts of the open rubber mixing machine are two different inward rotating rollers, which are generally the same size. One of the rollers can be moved horizontally backwards and forwards by manual or electric means to adjust the roll distance to adapt to different operating requirements, while the other is fixed. The two rollers rotate relative to each other at different linear speeds When the machine is started, the raw glue or compound is placed between or above the two rollers, and the compound is pulled into the gap between the two rollers due to the friction generated by the rotation of the rollers.After the rubber material enters the roll gap, it will be subjected to strong shear and extrusion action. The linear speed difference between the two rollers causes the rubber material to suffer uneven force between the roller gaps, resulting in a shearing effect, which cuts the macromolecular chain of the rubber material like scissors. At the same time, the molecular structure of the compound changes due to the extrusion of the roller, and the constant change of the gap also causes the compound to be repeatedly squeezed and stretched. Through this shearing and extrusion action, the macromolecular chain inside the rubber is broken, the original elasticity of the rubber material is reduced, and the plasticity is improved, so that the rubber material can be better processed in the next step, such as molding, vulcanization, etc. In the mixing process, if it is necessary to add a compounding agent (such as vulcanizing agent, accelerator, filler, etc.), it is usually added to the top of the roller after the rubber is wrapped. An appropriate amount of accumulated glue is helpful to the powdering process of the compound. With the rotation of the roller, the compound is gradually involved in the compound, and under the action of shearing and extrusion, it is fully mixed and dispersed with the compound, so that various components are evenly distributed in the compound, and the purpose of rubber mixing is achieved Machine Feature
1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX typepolyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant .Our machine adopts the double seals structure , and seals part is easy change and protect
2.Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc
3..The vulcanizing temperature can be set and showed in the digital displan .
4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically
5.Pillar is made of high quality # 45 steel, The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation
7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time
Product Parameters
Model
ltem
XY-3Φ252*720XY-3Φ360*1120XY-3Φ450*1500XY-3Φ550*1500XY-3Φ610*1730XY-3Φ710*2130XY-3Φ810*2430
(m/min)
Linear speed of front rollers
1.2-123~20.22.5-263~305.4~548-504-40

Speed ratio of front and rear roller
1:1:11:1:11:1:11:1:11:1:11:1:11:1:1
Max product width(mm)58092012501300150018502150
Min product thickness(mm)0.20.20.20.20.20.20.2

Motor power(kw)
224575110160185132KW*3
Overall size L*W*H(mm)3950*1720*12106500*1500*24407320*2200*29007550*2400*38007010*3950*37307650*4560*408011400*3200*5050
Weight(t)-5.5-14-21-35-42-67-110
Model
ltem
XY-3Φ252*720XY-3Φ360*1120XY-3Φ450*1500XY-3Φ550*1500XY-3Φ610*1730XY-3Φ710*2130XY-3Φ810*2430
(m/min)
Linear speed of front rollers
1.2-123~20.22.5-263~305.4~548-504-40

Speed ratio of front and rear roller
1:1:11:1:11:1:11:1:11:1:11:1:11:1:1
Max product width(mm)58092012501300150018502150
Min product thickness(mm)0.20.20.20.20.20.20.2

Motor power(kw)
224575110160185132KW*3
Overall size L*W*H(mm)3950*1720*12106500*1500*24407320*2200*29007550*2400*38007010*3950*37307650*4560*408011400*3200*5050
Weight(t)-5.5-14-21-35-42-67-110
Model
Item
XY-4Φ230*630XY-4Φ360*1120XY-4Φ400*1200XY-4Φ450*1400XY-4Φ610*1730XY-4Φ700*1730XY-4Φ710*2130

Working diameter of rollers(mm)
230360400450610700710

Working length of rollers(mm)
630112012001400173018502130

Speed ratio of front and rear roller
1:01:010.73:1:1:0.731:1.38:1.38:11:1.5:1.5:11:1.4:1.4:11:1.4:1.4:1.40.5-1 Adjustable1:1.5:1.5:1
(m/min) Middle-roll linear speed2.1-212-20.13-26.32.5-258-504-403-30
(mm) Adjusting nip range0-100-100-100-10200-300-20
Min product thickness(mm)0.20.20.20.20.150.20.15
(mm)
Production calendaring width
50092012001250150016001900
(kw) Motor power15557511018590KW*2110KW*2220
Overall size L*W*H3800*390*18903300*940*23506400*1620*24906500*1970*27406580*2460*29209950*3600*48707010*4150*3730
Weight(kg)-4.8-16-20-23-50-110-100
Model
Item
XY-4Φ230*630XY-4Φ360*1120XY-4Φ400*1200XY-4Φ450*1400XY-4Φ610*1730XY-4Φ700*1730XY-4Φ710*2130
Working diameter of rollers230360400450610700710
Working length of rollers630112012001400173018502130
Speed ratio of front and rear roller1:01:010.73:1:1:0.731:1.38:1.38:11:1.5:1.5:11:1.4:1.4:11:1.4:1.4:1.40.5-1 Adjustable1:1.5:1.5:1
Middle-roll linear speed2.1-212-20.13-26.32.5-258-504-403-30
Adjusting nip range0-100-100-100-10200-300-20
Min product thickness(mm)0.20.20.20.20.150.20.15
Production calendaring width50092012001250150016001900
Motor power15557511018590KW*2110KW*2220
Overall size L*W*H3800*390*18903300*940*23506400*1620*24906500*1970*27406580*2460*29209950*3600*48707010*4150*3730
Weight(kg)-4.8-16-20-23-50-110-100
Company Profile
The company has a series of advanced mechanical processing equipment, relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Qingdao Junlin machinery Co., Ltd has established a stable business relationship with many customers at domestic market & overseas market, and gradually established an image in similar factories.
The main products of my factory are: open mixing mill series, automatic refining devices series, rubber calender series, rubber sheet cooling line series, plate vulcanizing machine series, reclaimed rubber equipments series, rubber powder production equipment series as well. The company has been rated as high-tech enterprise, specialized in special new enterprises, and, the company have passed the ISO 9001:2015 quality management system, with a number of utility model patents and software Copyrights.Certifications
The company has a variety of products to meet different needs; Advanced technology to ensure high efficiency, stability and continuous innovation; Quality assurance, strict control and durable and reliable; Thoughtful service, pre-sales customized solutions, after-sales installation and debugging; Wide market coverage, good reputation.FAQ
Q1: Where is your factory located?
A1: Qingdao Junlin machine co.,Ltd is located at No. 9 Tangdao Bay Road, Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: Our company has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines are depended on the machines' options. Normally, the delivery time of standard machine could be within 30-45 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, our company will provide one set standard spare parts to customer according to different machines.
