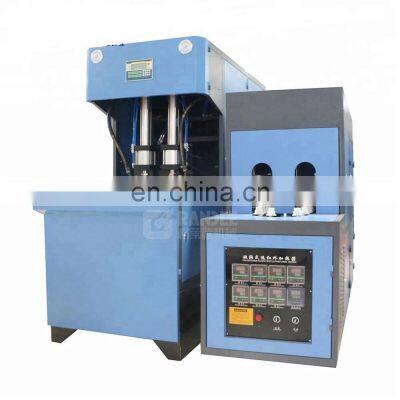

Semi automatic blow blowing moulding machine for 1 gallon water bottle

Product Description

Product Description
Semi automatic blowing mould machine for 1 gallon water bottleProduct DescriptionSpecifications:GD-C2 Semi-automatic water bottle blowing machineCE approvalSpeed: 600pcs/h for 5000ml pet bottleVolume:2500-5000mL Brief introduction of water bottle blow molding machine:1.GD-C2 Semi automatic blow moulding machine,is CE standard2.Produce bottle from 3L to 10L(2 cavity),PET bottle,for mineral water bottles,soda bottles,cola bottles ,and hot fill bottles3.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second4.Use infrared heating lamps,penetrating power strong,embryo heated while rotation, orbital revolution,heating uniformity,rapid and reliable5.Independent Temperature Control for different heating lamp to get ideal preform heating results6.Each machine has a saftey self-locking device,when a process have problem,the program will automatically switch to a safe state7.The bottle scrap rate less than 0.2%8.Operated only by one person without special training9.Simple installation & startup adjustment Machine show Bottle Preform Preheating datas setup interface Heater 2 cavity mold Main technical parameter:TypeItemUnitGD-C2 semi automatic blow molding machineContainerProduct material/PETVolumeL0.5-5L(2 cavity)6L-10L(1 cavity)Theoretic outputBPH600BPH for 5L pet bottlePreform lengthmm15-300Preform inner diametermm15-100Max mould plate dimensionmm450*550Max mould thicknessmm450MoldingClamping forceKN120Mould opening strokemm350Blowing air pressureMpa<=3Working pressureMpa<=1Machine size and weightMain machine weightT0.7Main machine dimensioncm175*75*170Heater dimensioncm187*63*145Heater weightT0.28Powerkw14Related productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Water filling machine The machine is mainly used for producing PET bottle mineral water, pure water abd non-carbonated drink, and washing filling screwing is integrated in one unit, short the water contacting with outside, improve the sanitation condition, production capacity ad economic benefit. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max) Automatic PE film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company InformationOur exhibitionOur ServicesCustomer's service:1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of workshop for you .3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottlematerial, pet or glass,etc After service:1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.2. We supply below necessary documents with the machine: a. Machine layout b. Electricity diagram c. Machine certificate d. General manual book/maintenance book3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.FAQQ1: How to find suitable blow molding machine or complete water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cnQ2: How to start a water factory business? What's my budget?A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 6000liters/hr, etc, then we can know to choose which model for you, like 220ml-2000ml blow molding machine, 3L-10L blow molding machine, 5 gallon blow molding machine, etc.Q3: How to confirm the bottle shapes that is very attractive for your customer?A3: Confirm the plastic bottle size is 350ml, 500ml, 1000ml, 1500ml or 2000ml, then our engineer can design the bottle shapes for you.Q4: Which kinds of machines included in one complete blow molding machine?A4: Main blowing machine, heater, perform loading machine, high pressure air compressor machine, low pressure air compressor machine, air cooling dryer, air filter, water chiller and air storage tank.Q5: Are you a trading company or a manufacturer?A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .Q6: Do you have technical support after we purchased your machines?A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.Q7: If you buy our machines, can you offer us wear-out spare parts?A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
