US$6,000.00-10,000.00
|
1 set
(MOQ)
|
Basic Info.
Structure
Vertical Drilling Machine
Precision
Normal Precision
Certification
CE, ISO 9001
Max Distance From Spindle Head to Base
2400g
Longitudinal Travel of Spindle Head
840K
up and Down Travel of Radial RAM
680L
up and Down Travel of Spindle
220m
Size of Worktable
1160*750mm
Motor of Spindle
2.25(3HP)*4p
Elevator Motor of Radial RAM
0.75(1HP)*4p
Transport Package
Wooden Pallet and Wooden Case
Specification
2650*1280*2500mm
Product Description
Product Description
High rigidity, heavy drilling, double slideway design, stable operation√ Strong drilling ability, Mehanna tough cast iron, high temperature tempering, rigid and tough.√ The gear is made of alloy steel, by quenching and carburizing heat treatment.√ The spindle is made of chrome-molybdenum diamond, outstanding durability.

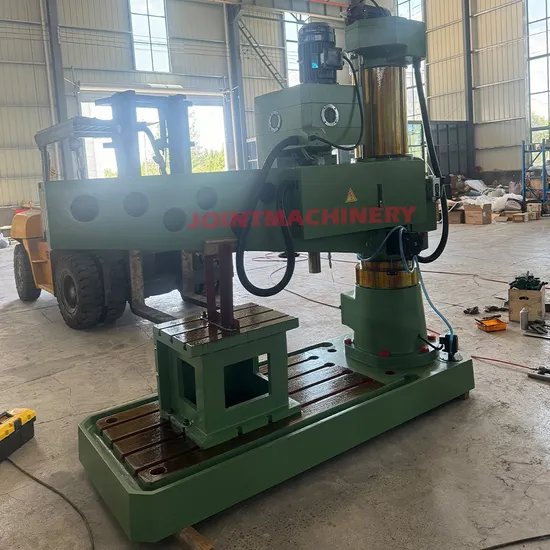

Strong Drilling Ability HC-1200 Radial Drilling Machine for Metal Radial Drilling Machine Tool
Model | HC-1200 |
Distance between spindle center and column center | Max | 1200 |
Min | 260 |
Distance between spindle nose to base | Max | 1200 |
Min | 300 |
Diameter of spindle | E | 270 |
Height of column | F | 2055 |
Max distance between spindle head to base | G | 2400 |
Floor space | HXI | 1850*850 |
Longitudinal travel of spindle head | K | 840 |
Up and down travel of radial ram | L | 680 |
Up and down travel of spindle | M | 220 |
Spindle hole | MT | NO.4 |
Size of worktable | mm | 1160*750 |
Motor of spindle | kw | 2.25(3HP)*4P |
Elevator motor of radial ram | kw | 0.75(1HP)*4P |
Motor for clamping | kw | - |
Spindle feed range | mm/rev | 0.06-0.20 |
Grade | 3 |
Spindle rotation | 60HZ rpm | 88-1500 |
50HZ rpm | 72-1243 |
Grade | 6 |
Working capacity | Drilling | 42 |
Tapping (S45C) | 24 |
Net weight | kg | 1750 |
Gross weight | kg | 1930 |
Dimension | mm | 2050*950*2350 |
Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.
Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
>>
