US$1,000.00-15,000.00
|
1 set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Certification
CE, ISO 9001
Color
According to Customers′ Require
Max. Grinding Diameter of Workpiece
200mm
Max. Grinding Length of Workpiece
500mm
Max. Workpiece Weight
50kg
Wheel Peripheral Velocity
45m/S
Wheel Spindle Speed
1670rpm
Roundness/Roughness
1.5um/Ra0.25um
CNC System
Taiwan Syntec CNC System
Transport Package
Wooden Pallet or Wood Case
Production Capacity
400 Sets/Year
Product Description
CNC High Speed Transverse Cylindrical Grinding Machine
(GKD-200HA GKDE-200H)
Main Functions and Features:
1. This series machine is suitable for large quantities cylindrical shaft parts with shoulder and face machining grinding, shaping a plurality of steps to achieve the end face of the wheel when installing wide, high degree of automation, enabling one person to operate more than one.
2. Using SYNTEC CNC system(other systems can also be configured according to the custom,such as Japan FANUC or Germany SIEMENS).
3. High precision automatic measuring instrument is configured to achieve closed-loop automatic grinding work cycle to ensure dimensional accuracy.
4. Wheel frame using high-speed hybrid spindle assembly, with high rotation precision, rigidity, wheel width can be installed.
5. Configure a separate electrical box, tank and filtration tank.
6. Wheel motor adopts AC frequency adjustment device, that can basically achieve constant linear speed grinding.
7. The company is suitable for all levels of customer demand, can be formulated in consultation simple, mid-range and high-end precision CNC surface grinding machine.
Technical Parameters
Specifications | Units | GKD-200HA*500 | GKD-200HA*750 |
Dia. to be ground | mm | Φ8-Φ200 | Φ8-Φ200 |
Max. length to be ground | mm | 500 | 750 |
Center height | mm | 135 | 135 |
Distance between centers | mm | 550 | 750 |
Headstock center | | Morse 4# | Morse 4# |
Tailstock center | | Morse 4# | Morse 4# |
Max. workpiece weight to be ground | kg | 50 | 50 |
Wheel size | mm | Φ400*50*Φ203 | Φ400*50*Φ203 |
Wheel peripheral speed | m/s | 45 | 45 |
Wheel spindle rotation speed | rpm | 1670 | 1670 |
Min. pulse amount in X-axis | mm | 0.001 | 0.001 |
Min. pulse amount in Z-axis | mm | 0.001 | 0.001 |
Roundness | um | 1.5 | 1.5 |
Dia. uniformity in the longitudinal section | um | 5 | 5 |
Surface roughness | um | Ra0.25/0.63 | Ra0.25/0.63 |
Total motor power | kw | 10.825 | 10.825 |
Longitudinal servo motor | kw | 2.6(10N.m) | 2.6(10N.m) |
Traverse servo motor | kw | 2.6(10N.m) | 2.6(10N.m) |
The foundation depth depends upon the soilproperties, but it should be less than 400mm.
Main Accessories: *Wheel periphery dresser *Wheel hub *Balancing arbor *Open-type steady-rest *Wheel extractor *Magnetic separator *Taiwan SYNTEC CNC system Extra Accessories: *Wheel balancing stand *Surface measuring instrument *Diameter measuring instrument *FANUC or SIEMENS CNC system
Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile

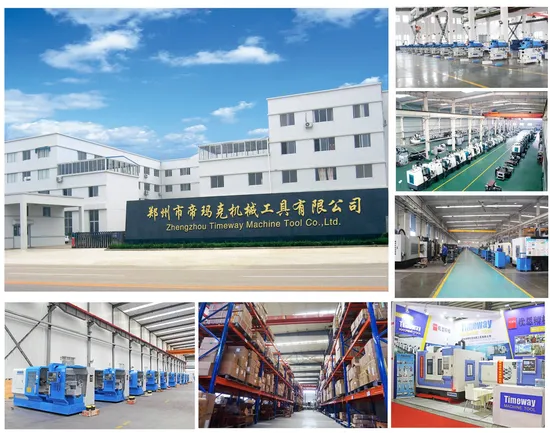

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view
Conventional Lathe | CNC Lathe
| CNC Machining Center
| CNC Milling Machine
|
Grinding Machine | Milling Machine
| Special Use Lathe | Boring Machine
|
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
>>
