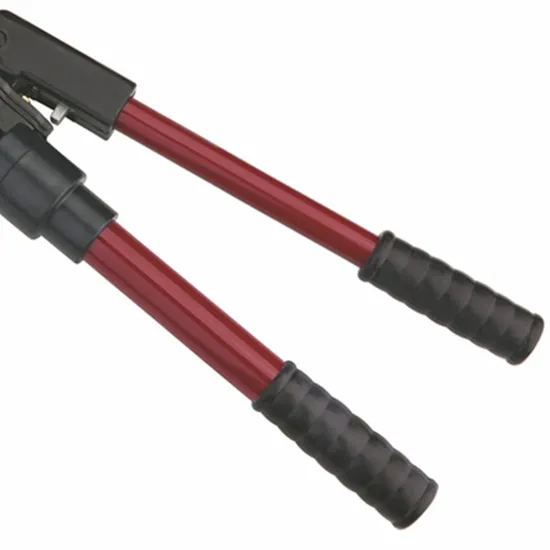

Hydraulic Swaging Press Wire Rope Hand Die Press Hydraulic Crimping Pliers Tool

Product Description

Overview Quick Details Place of Origin: Zhejiang, China (Mainland)
Brand Name: L&R
Model Number: HP-120CW
Type: Mini Pliers
Material: Carbon Steel
Application: Crimping Packaging & Delivery Packaging Details: carton packing
Delivery Time: 1-3 days Product description

1.The compression pliers are designed for hydraulic crimping on power calbe and wire.The crimped conductor is tested in high conductivity and close contact so that it is uneasy to break out and turn hot.
2.Open cut design for convenient operation.
3.Dies are quickly put on tube by double speed unit.Then compression force lift and automatically change to low speed.The operation finishes with energy saving and time shorten.
4.The head could be rotated 180º freely for narrow space working.
5.Fitted with safety valve. When pressure reaches to limited max.Value,pressure release automatically to prevent over pressure.
6.CYO-430 Standard nine sets of die assembling:50,70,95,120,150,185,240,300,400
7.Fiberglass insulated handles to prevent accidental electric Hitting.
8.Packing case is made from robust integral plastic box.

Specifications
Modle	Output (T)	Contact Mould(mm²)	Ram Stroke(mm)	Size (mm)	Weight(kg)
EP-410	12	35-300	30	620x160x70	6.5
EP-430	12	35-300	30	620x160x70	6.5
EP-510B	13	50-400	38	620x150x70	7.2
EP-510B	12	16-240	25	250x145x80	7.0
