Product Description
Product Description
Nail removing functional wood pallet crusher machine/wood pallet crusher machine/board crusher
Product Description
Introduction of wood pallet crusher machine:
a, It could be used to recycle the nailed wood pallets and other wood processing products.
b, It can process the templates which is for the building construction.
c, It can remove the nails automatically and grind the pallet into very small sizes for other products' using such as
compressed pallet.
Features of wood pallet crusher machine:
a. It has the feeding and discharging converyors which makes it save labor;
b. It could work with the cyclone to clean the working environment;
c. The nails can be separated automatically;
d. Kinds of wood products could be processed such as pallet, templates and so on;
|
wood pallet crusher machine can be used for crushing waste wood, wooden pallet, waste plywood, old wooden shelf, waste building templates, wooden box, wood log, wooden lumber, scrap wood, etc.
Parameters of wood pallet crusher machine:
Model
| TZTP-600
| TZTP-800
| TZTP-1000
| TZTP-1300
|
Width of feeding conveyor
| 600mm
| 800mm
| 1000mm
| 1300mm
|
Feeding port size(WxH)
| 600x100mm
| 800x120mm
| 1000x150mm
| 1200x200mm
|
Power of main motor
| 22kw
| 37kw
| 45kw
| 55kw
|
Power of feeding motor
| 4kw
| 4kw
| 4kw
| 5.5kw
|
Conveying speed
| 0.45m/s
| 0.65m/s
| 0.75m/s
| 0.80m/s
|
Feeding roller rotary speed
| 650rpm
|
Cutter shaft rotary speed
| 680rpm
|
Working capacity
| 1-3ton/h
| 3-4ton/h
| 5-10ton/h
| 8-15ton/h
|
Weight
| 3000kg
| 5500kg
| 6000kg
| 7000kg
|

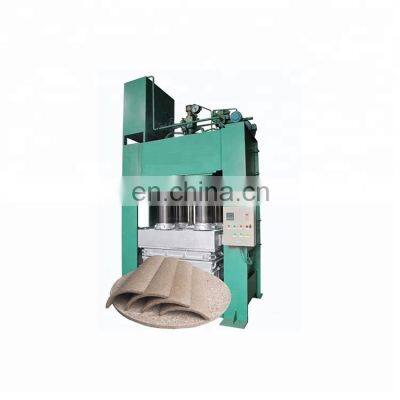

Pictures show of wooden pallet crusher:
Company Information
If you are interested in our wood pallet crusher machine, please feel free to contact me:
>>
