High Quality Automatic Hook & Loop Tape Cutting Machine

US$2,000.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DP-160CQ
Automatic Grade
Automatic
Power Source
Electric
Type
Rubber Cutting Machine
Packing Size
550X550X1000mm
Voltage
as Requirement 220V/110V etc
Cutting Width
160mm
Cutting Length
Not Limited
Model
Hook & Loop Tape Cutting Machine
Transport Package
Wooden Case
Specification
SGS
Trademark
dapeng
Origin
Kunshan
HS Code
844110000
Production Capacity
50 Sets/Monith

Product Description

hook & loop tape cutting machine
Nylon webbing hot cutting machine(DP-160A)
1, microcomputer controller
2, length can be setting
3, Knife can be added with heater for hot cut
4, cut egde can be heated and solidified without burrs
5, Ergonomically designed
6, Operation is easy
Application:
Nylon webbing hot cutting machine
Sizing cutting for hook & loop, cotton yarn belt, elastic band, plastic belt,
Zipper, sleeve, paper, flat cable, small wire, metal film
Model: DP-160A
Voltage: 110V 220V
Power: 1/4HP
G. W. (KW): 90kgs
N. W. (KW): 125kgs
Cutting Length: 0.1-9999.9mm
Cutting Width: 1-160mm
Measurement: 600x700x1000mm
Model DP-160A
Voltage 220V
Power 1/2HP
N. W. 80kg
GW. 130kg
Cutting Length 0.1-9999.9mm
Cutting Width 1-160mm
Measurement 550x550x1000mm
Hook & Loop Tape Cutting Machine
Configuration List :
touch screen ----------- 1 set
PLC programmable logic controller ----------- 1set
Servo drives ----------- 1 set
servo motor ----------- 1 set
cylinder ----------- 1 set
unwinder ---------- 1 set
hot cutting knife -------- 1 set
heating copper -------- 1 set Product Details: Computer Webbing Cutting Machine (Hot and Cold Knife) Applications:shoelaces, nylon tapes, strip tapes, ribbon tape, bag band small webbing, Woven Tapes, Strip Tapes, bag Band, etc. But no pure cotton materials.
Details: High speed: It can cut 80~100 cut per minute. (50mm long)
Accuracy: Cut-length is accurate Cutting to a stepping motor
Cutting type: Melting & cutting by hot knife, woven label is cut neatly without fraying but not for heavy materials and installed with anti-static electricity device.
Automatic operation: It works automatically only by setting length and quantity
Automatic stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on.
Used for : strip tapes, ribbon tape, bag band small webbing, Woven Tapes, Strip Tapes, bag Band, etc. But no pure cotton materials.
Cutting Method:Cold & Hot Knife (all-in-one)


SPECIFICATIONS:
Model
Cutting
Length
MM
Max
Cutting
Width
MM
Cutting Speed
RPM
Weight
KGS
Voltage
Power
KW
Max
Blade TEMP
°C
Packing Size
MM
DP-160A
1-99999
160mm
80-100
95/75
110/220V
1.4
300
655X590X540

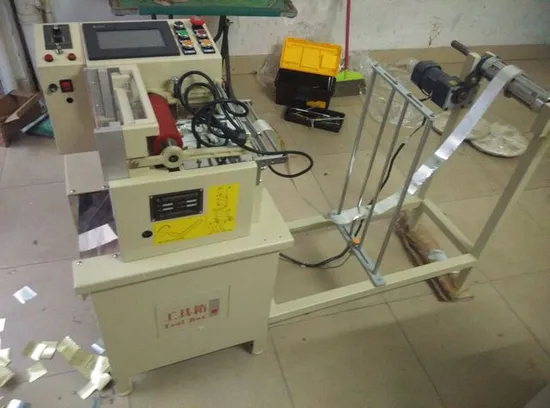

Product Images: Computer Webbing Cutting Machine (Hot and Cold Knife)
