New condition magnetic separator for ore dressing plant

Product Description

Product Description

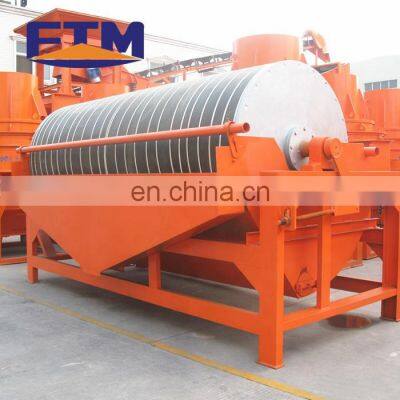

New condition magnetic separator for ore dressing plant
Product Introduction
New condition magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore, ilmenite etc, and can also be used for iron removal work from coal, non-metal ore and construction materials.
The wet type permanent-magnetic cylindrical separator is a common magnetic separator that can be widely used in iron ore separation. It is suitable for separating strong magnetic minerals. In recent years, it’s also used as concentrating equipment for replacing the magnetic dewatering tank before filtration.
Working Principle
The pump enters into the mining area of the cell though ore box with the force of water flow. Magnetic particles form into magnetic ball or linkage with the force of magnetic field. At last, the non-magnetic or weak magnetic minerals are discharged out of the cell with plump.
Structure of the magnetic separator
The wet type permanent-magnetic cylindrical separator is mainly composed of cylinder, magnetic system, trough and transmission part. The cylinder is welded by 2-3mm stainless plate, and the end covers are aluminum casting. The two parts are connected with stainless screws and cylinder. The motor drives cylinder and moves circularly through gearbox. The magnetic system which is equipped inside cylinder is an open style. The magnet is fixed on the foundation plate of field yoke by stainless screws. The shaft of field yoke stretches out of cylinder and connecting levers are fixed at the end of shaft. Magnetic system obliquity can be adjusted by tripping connecting levers and the obliquity can be fixed after adjusting well. The working area of trough is made of stainless plate. Machine frame and other parts of trough are welded by ordinary steel.
Advantages and features
1. The strength of magnetic field is large in the surface of tube;
2. The transmission system is stable and reliable;
3. Can significantly improve the grade of ore before it is into the mill.
4. Have a long life time.
Technical parameter
Company Information
Henan Fote Heavy Machinery Co., Ltd., the former Henan First Machinery Factory, founded in Henan
ZhengzhouChina machinery manufacturing capital in 1982, is a large jointstock company specialized
in manufacturing heavy mining machinery and civilian machinery; it has six production bases with an
area of 240,000m2, more than 2000 existing employees, 160,000 m2 tandardized heavy industrial
plant, and about 500 sets of big and medium sized processing, riveting, welding and assembly
equipment. After 30year construction and development, Fote has become famous production and
export base of mining machinery and civilian machinery in China.
We provide series of ore-dressing plant,sandstone equipment,ball mill,industrial dryer,ungrouped,confeyor system,magnetic separator,flotation machine,gravity separating machines,high frequency screen,rotary kiln, ect. Our products have been sold to more than 90 countries and regions all over the world, such as Russia, the United States, Kazakhstan, India, Indonesia, South Africa, Libya, Sudan and so on.
Our Services
1, We will provide you the prophase plan,process flow design and manufacturer equipment according to your special requests.
2,Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3,We will regularly pay return visit to customers to establish long term friendship. Supplying technique, building design, instruction, installation and debugging for free.
4,We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
FAQ
1,What guarantee do you provide?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery. If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
2,How about the price?
We are the direct manfacturer,so we can offer you the lowest price than market price, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
