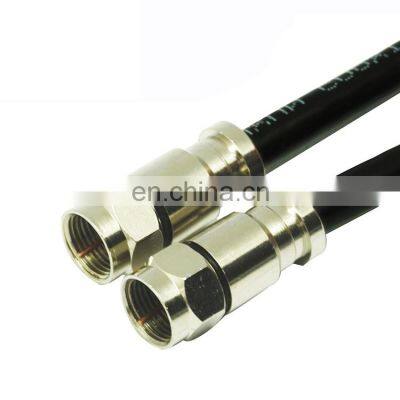

Free Sample RG6 Coaxial Cable With F Type Connector For Cable TVProduct Description
RG6 Coaxial Cable
|
|
CONDUCTORS
| COND.MATERIAL
| BC
|
CONSTRUCTION
| 1.02±0.0030
|
DIELECTRIC
| DIAMETER
| 4.57±0.15mm
|
MATERIAL
| FPE
|
SHIELDED
| MATERIAL
| AL-FOIL
|
SHIELDED
| BRAIDING MATERIAL
| AM
|
SHIELDED
| BRAID CONSTRUCTION
| 0.12*128±0.005mm
|
OUT JACKET
| DIAMETER
| 6.9±0.2mm
|
| | MATERIAL
| PVC
|
ELECTRICAL CHARACTERISTICS
| | |
Impedance
| 75±3 Ohm
|
Capacitance PF/m
| 53±5
|
ATTENUATION
at 20℃
(≤dB/100m)
| 50MHz
| 4.90
|
100MHz
| 6.90
|
200MHz
| 9.70
|
500MHz
| 15.10
|
800MHz
| 19.20
|
1000MHz
| 21.50
|
Click here to contact us for more information and free sample
