Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL

US$1,200.00-17,800.00 1 Set (MOQ)

Basic Info.

Model NO.
Z-2600-24.94/0.415(0.24)
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Power Transformer, Distribution Transformer
Frequency Characteristics
Power Frequency
Shape of Core
Ring
Rated Capacity
2600kVA
Winding Material
Copper\Aluminum
Warranty
24 Months
Frequency
50Hz/60Hz
Cooling
Onan/Knan
Transport Package
Wooden Case
Trademark
YaWei electric
Origin
China
HS Code
8504210000
Production Capacity
500 Sets Per Month

Packaging & Delivery

Package Size
2000.00cm * 2000.00cm * 2000.00cm
Package Gross Weight
1000.000kg

Product Description


ZGS11-H(Z) Combined transformer ZGS11 series combined transformer is a new type of power distribution equipment. It has small volume and reasonable structure. Combined transformer is especially applicable to the load center city grid, so it can reduce the consumption and improve the quality of power supply. What's more, this series of products have been widely used in communities across the country, public places and industrial mining enterprise and other distribution sites.
Product features
1. Fully sealed and insulated structure can guarantee the security of person.
2. It is not only used for ring network but also terminal.
3. Low loss,low noise, superior performance.
4. Low temperature,overload ability.
5. Transformer adopts special structure and its outstanding advantages is high quality.

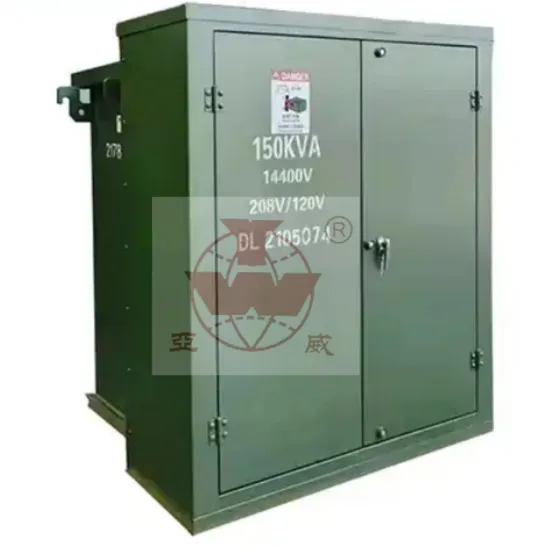

Pad Mounted Transformer
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss (W) On-load Loss (W)
75KVA 34.5KV/ 19.92KV/ 13.8KV/ 79.57KV/ 13.2KV/ 7.62KV/ 12.47KV/ 7.2KV or others 240V 480V 277V 600v 347V 180 1250
112.5KVA 200 1500
150KVA 280 2200
225KVA 400 3050
300KVA 480 3650
500KVA 680 5100
750KVA 980 7500
1000KVA 1150 10300
1200KVA 1320 12120
1500KVA 1640 14500
2000KVA 2160 20645
2500KVA 2680 27786
3000KVA 3300 30300
3750KVA 4125 37875
