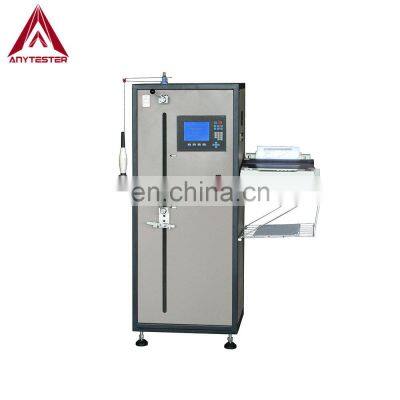

LCD Display Single Yarn Strength Tester

Product Description

Product Description
Product DescriptionHY061F Single Yarn Strength Tester is used to determine the breaking load and extension of single yarns and threads up to 500cN, 3000cN, 5000cN or 12000cN load range depending on choice of load cell. StandardASTM D2256ISO 2062GB/T3916, 14344BS 1932SpecificationModelHY061FLoad range12000cN max.(500cN, 3000cN or 5000cN optional)Gauge length250mm±1mm, 500mm±1mmPre-tension range1cN~100cNLoad error≤±1% of display valueElongation range220% max. under 250mm gauge80% max. under 500mm gaugeTest speed50mm/min~800mm/min (can be customized)Test times1~200 times settableLinear density1~999.9tex settablePower supplyAC220V±10%, 50HzDimensions550mm×450mm×1295mmWeight120kgDetails★ Computer control, LCD display, easy to operate★ Large speed range, 50~800mm/min settable★ With two gauge lengths: 250mm and 500mm★ Automatically save data while sudden electricity failure★ A dedicated printer can be provided to printout test data★ The machine can also be connected with computer by using professional software Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
