Universal Conventional Column Bed Type Milling Machine

US$10,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TUM1680BVH
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Table Size
2000X400mm
Leadscrew
Ballscrew on X, Y Axes
Worktable Swivel Angle
±45°
Table Travel
1620X400X500mm
X,Y Axis Feeding
22.4-560mm/Min 8steps
Transport Package
2400X2200X2470 mm
Specification
3800kgs
Trademark
TOKMC
Origin
Tengzhou
HS Code
84595900
Production Capacity
100 Sets/ Year

Product Description

Product Description

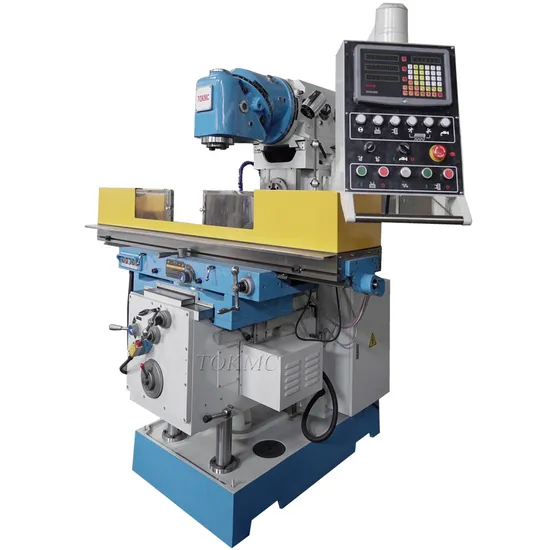

Universal Conventional Column Bed Type Milling Machine
Heavy Construction And High Rigidity.
Wide Slide ways For Stability.
ISO50 Spindle.
Universal Head. Pendant Control.
Hardened And Ground Slide ways and Table.
Model TUM1680BVH
Spindle Taper 7:24 ISO 50 V /H
Distance from Spindle to Column surface 200-1000mm vertical milling head
Distance from Spindle Nose to Table Surface 210-700mm vertical milling head
Max.Distance from Spindle Center to Table Surface(H) 0~500 mm horizontal
Distance from Spindle Center to Table Surface 280-1160mm vertical head
Spindle Speed Range 50-1520 rpm V
60-1850 r.p.m H
Table Size 2000×400mm
Worktable Swivel Angle ±45°
Table Travel 1620mm
Cross 400mms
Vertical 500mm
X,Y axis Feeding 22.4-560mm/min 8steps
Z axis Feeding 11.2-280mm/min 8steps
T-slots of Table 3
Width 18mm
Distance 80mm
Main Motor 5.5kw/7.5 kw
Feeding Motor 1.1kw
Coolant Pump Motor 40w
Overall Dimensions 2400x2200x2470 mm
Net Weight 4100kg

Optional accessory
three axes DRO
universal dividing head 200mm with tailstock
slotting head
working area guard
machine vise 8"
Clamping Kit 58pcs
rotary table 250mm
spindle guard
X,Y axes ballscrew
