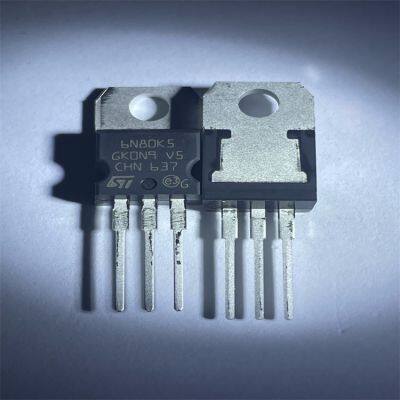

STP6N80K5 STMicroelectronics MOSFET N-channel 800 V, 1.3 Ohm typ 4.5 A MDmesh K5 Power MOSFET

Product Details

Product Description

Product Description
Factory
Mfr. #:
STP6N80K5
Manufacturer: STMicroelectronics
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 800 V
Id - Continuous Drain Current: 4.5 A
Rds On - Drain-Source Resistance: 1.6 Ohms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 4 V
Qg - Gate Charge: 13 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 85 W
Channel Mode: Enhancement
Tradename: MDmesh
Series: STP6N80K5
Packaging: Tube
Brand: STMicroelectronics
Configuration: Single
Fall Time: 16 ns
Product Type: MOSFET
Rise Time: 7.5 ns
factory pack quantity: 1000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 28.5 ns
Typical Turn-On Delay Time: 16 ns
Unit Weight: 0.068784 oz

---
