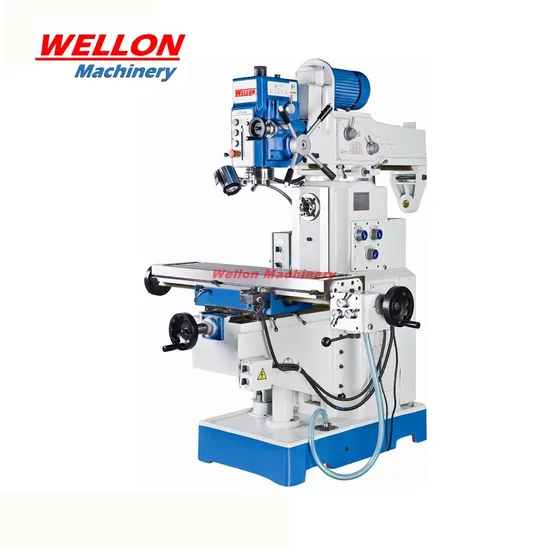

Universal Milling Drilling and Tapping Machine Xz6326b Knee Type Mill Machine

US$5,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XZ6326B
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1120X260 mm
T Slot No./Width/Distance
5/14/50
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
84595900
Production Capacity
50 PCS/Month

Product Description

Products Description:
Performence Features:
Spindle can feed automatic
Spindle can be tapping
Spindle can be forward and reversal
X,Y,axis can feed automatic
Table size 1270*260mm is optional Technical parameter:
Model unit XZ6326B
Table size mm 1120X260
T slot no./width/distance no 5/14/50
Max. load of Table kg 200
table Longitudinal travel(manual/auto) mm 600
table Cross travel (manual) mm 300
table Vertical travel(manual) mm 380
Spindle taper ISO40
spindle speed /step -- Vertical rpm 67-2010/12steps
--Horizontal rpm 40-1300/12steps
Max.drilling dia. mm 30
Max.end milling width mm 125
Max. vertical milling Dia. mm 25
Max.tapping dia. mm M16
quill travel mm 120
swivel angle of headstock degree ±45º
vertical spindle axis to column surface mm 220-760
vertical spindle nose to table surface mm 115-430
horizontal spindle axis to table surface mm 0-380
horizontal spindle axis to ram bottom mm 175
ram travel mm 520
Longitudinal feed mm / min 24-720/8steps
Longitudinal rapid speed mm / min 1040(X)
automatic spindle feed 0.1/0.15/0.3
main motor kw 1.5/2.2(V),2.2(H)
feed motor kw 0.37(X)
coolant motor kw 0.04
overall dimension cm 158X145X215
N/W,G/W kg 1350/1500

Standard Accessories:
Drill chuck
Collet chuck kits
Draw bar
Reduction sleeve
Mill arbors
Working lamp
Coolant system
Chip tray
Machine vice
Operate tools
Optional Parts:
3-axis DRO
Y-Axis auto power feed
58 pcs clamping kits
Work table protection
