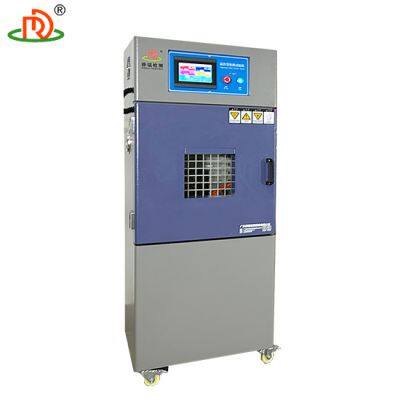

Temperature Controlled Battery Short Circuit Test Chamber

Product Details

Product Details

Product Description

Product Description
This machine is designed according with the requirements of various battery short-circuit test standards. According to the standard, the short-circuit device must meet the internal resistance of 80 ± 20mΩ to obtain the maximum short-circuit current required by test. In addition, the circuit design of the short-circuit device must also be able to withstand large currents impact.
We chose industrial-grade DC electromagnetic contactors, all-copper terminals, and internal copper plates to guide the flow. The wide and thick copper plates effectively improve the heat dissipation effect, make the high current short-circuit device safer, effectively reduce the loss of test equipment, and ensure the test data Accuracy.
FEATURES
1. Battery Pack Short Circuit Tester has three relatively independent control modes: remote PC+ on-site touch screen + remote control. The parameters such as current, voltage and temperature can display the record.
2. There are total voltage, cell voltage, temperature, data record and data curve, etc.
3. High current short circuit switch power is small, energy saving and environmental protection, with double protection system, and intelligent temperature protection, arc extinguishing and rust prevention
4. Remote control monitoring system All control parameter settings, data acquisition, video recording can be operated by a computer with a distance of >30m;
TEST STANDARDS
GB31241, GB/T31485, GB/T314673, IEC62660-2018.
SPECIFICATION
ItemDR-D201
Internal Dimension500*500*500mm(W*D*H)
External Dimension700*800*1530mm(W*D*H)
Internal MaterialSUS201 stainless steel plate, 1.2mm thick and affixed with Teflon;
External MaterialPaint treatment of cold-rolled steel sheet
Observe Window250*250mm

Two layers of tempered glass

Transparent window with stainless steel mesh
Exhaust portDiameter 100mm
Pressure relief port200*200mm
DoorSingle door design, the door is equipped with a safety limit switch
The side is equipped with an explosion-proof chain
Only close the door to operate the device to ensure the safety of personnel
Testing HoleThere are two testing hole diameter 50mm, for cable connect.
Control ModeKey Type
Temperature collection rangeRT-1000℃
Temperature Acquisition ChannelChannel 1
Temperature Display Accuracy±0.5℃
Voltage collection range0-100V
Voltage Acquisition ChannelChannel 1
Voltage Display Accuracy±0.5%
Maximum Short-circuit Current1000A
Current Acquisition ChannelChannel 1
Current Display Accuracy±0.5%
Internal Resistance of
Device Loop
80±20mΩ
VoltageSingle Phase 220V
Power200W
Machine Weight85kg
