Soft PVC Mixer Machine Set for Fast Mixing PVC Powder Calcium Carbonate Additives DOP Oil

US$14,000.00-17,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SRL-Z 500/1000L
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules, Powder
Application Area
Polymer
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Cylindrical
Stirring Type
Vortex
Warranty
1 year
Working
High Speed Mixing/Cooling Mixing
Capacity
500/1000 Liter
Hot Mixer Motor Power
75kw
Mixer Blade
3-Layer Stainless Steel Blades
Cooling Mixer Power
18.5kw
Speed Adjustment
Inverter
Max. Rotation Speed
860rpm
Gross Weight
5800kgs
Mixer Type
Powder Mixer
Layout Type
Verticle
Operating type
Batch
Transport Package
Plastic Film, Wooden Box
Specification
Stainless steel, carbon steel
Trademark
Kenneth
Origin
China
HS Code
8477800000
Production Capacity
30sets/Month

Product Description

Product Description Kenneth High Speed Turbo Mixer is one of the mixing equipment mainly used for fast blending of plastic and polymer mixture composites: PVC dry blend, powder coatings, color masterbatch, pigments, thermoplastic rubbers, wood plastic composites(WPC), stone plastic composites(SPC) etc.

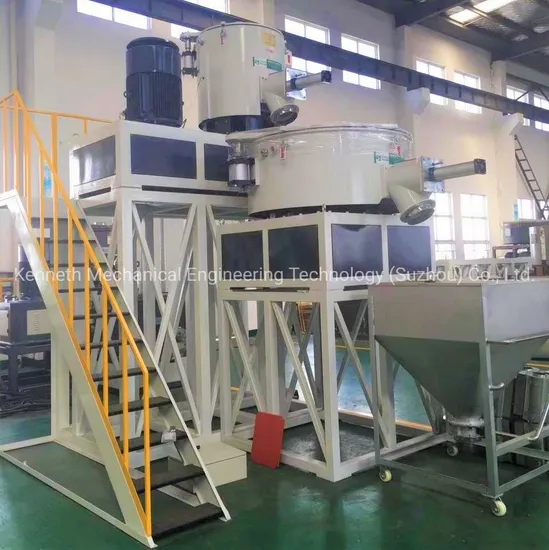

Detailed Photos
Product Parameters
Hot Mixer
Total Volume 500L
Effective Volume 375L
Batch Weight 125~150kg/batch
Mixing Time 8~12min
Throughput(PVC) 750~900kg/hr (Varies as per processing and formula)
Heating Method Self-friction(optional with external heating)
Measure of Temperature Thermocouple
Material of Mixing Tool Stainless steel, SS304
Configuration of Mixing Tool 3-layer design
Rotation Speed of Mixing Tool 430/860RPM
Material of Main Shaft 40CrHRC28-32
Sealing Method Quadruple framework sealing configuration
Lubrication Method Grease
Lid Open Air cylinder
Lid Close Clip
Lid Protection Limit switch
Lid Material Cast aluminum
Inner Wall Layer of Pot Stainless steel, SS304, thickness 6mm
Inner Bottom Layer of Pot Stainless steel, SS304, thickness 8mm
Outer Layer of Pot Carbon steel, thickness 5mm
Pot Jacket Filled with insulation cotton(optional with oil circulation)
Discharge Outlet Equipped with jet cleaner and flow back nozzle
Motor Power 75kW
Speed Control Inverter, ABB
Cold Mixer
Total Volume 1000L
Effective Volume 640L
Cooling Method Cold water circulation
Measure of Temperature Thermocouple
Material of Mixing Tool Stainless steel, SS304
Rotation Speed of Mixing Tool 60RPM
Configuration of Mixing Tool 1-layer design
Material of Main Shaft 40CrHRC28-32
Sealing Method Quadruple framework sealing configuration
Lubrication Method Grease
Lid Open Air cylinder
Lid Close Clip
Lid Protection Limit switch
Lid Material Cast aluminum
Inner Wall Layer of Pot Stainless steel, SS304, thickness 6mm
Inner Bottom Layer of Pot Stainless steel, SS304, thickness 8mm
Outer Layer of Pot Carbon steel, thickness 5mm
Pot Jacket Water circulation
Discharge Outlet Equipped with jet cleaner and flow back nozzle
Motor Power 18.5kW
Electrical&Control Component
Power Supply 380V, 50Hz or custom
Control Electrical control cabinet
Motor SIMA(top Chinese brand)
Inverter ABB
Temperature Meter OMRON
Other Main Component Siemens

Installation Instructions 1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
Our Advantages 1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
European technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
3 . Professional
Over 200 mixing dosing feeding projects for bulk materials erected and running well.
Top engineers of China with over 25 years' experience of mixing dosing feeding technologies for bulk materials.
Custom proposal for each client as per specific requirements.
After Sales Service Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and Kenneth service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says, Kenneth always stands at customer's point to offer the optimum solution and help customer to maximize profit. Kenneth has its own customer management system and spare parts management system which ensure quickest responds and enough regular SKUs for easy-wearing parts whenever customer requests.
FAQ Why the mixer is tagged with "high speed" and "turbo"?
Vertical arranged special shape designed mixing tools with a high rotation speed(peripheral speed 20-50m/s) lead to a "turbo" flowing of mixtures. The high speed intensive motion causes massive friction among mixtures which leads to "heating" effect to mixture. The accompanied temperature raise creates perfect compounding condition for additives e.g. plasticizer, stabilizer, lube, etc at different temperature range while mixing is ongoing. High speed turbo mixer is the ideal mixing machine perfect match to polymer compounding processing requirements.
