US$1,000.00-10,000.00
|
1 Set
(MOQ)
|
Basic Info.
Maximum Lifting Height
>20m
Certification
ISO9001:2000
Transport Package
Plywood Box
Production Capacity
5000 Set / Year
Product Description

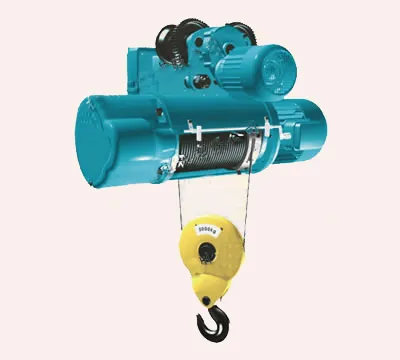

Electric Hoist
The common electric hoist is mainly used along with overhead crane or I-shape beam to lift heavy goods and move them to appointed place.
Brief Description
Composed by cable reel, wire rope, electric motor, brake, pendant/remote and other components, the electric hoist has such characteristics as compact structure, easy installation, low cost and so on, which can be widely used in workshop, factory and other place to lift heavy load.
Main Technical Specification
- Lifting capacity ranged from 0.5t to 30t.
- Lifting speed can be single speed (like 8m/min), or double speed (like 0.8/8m/min), or variable speed (as 0.8~8m/min).
- Lifting height can be 3m to 30m.
- Trolley traversing speed can be 20m/min or 30m/min.
- Control method can be pendant control, remote control, or combined one.
- The working duty is A3~A5.
- The working ambient is -25ºC-+40ºC.
Structure for Electric Hoist
- The whole electric hoist consists of trolley, motor, reel, wire rope, hook, control box, pendant/remote control and so on.
Component Used on Hoist
- Electric motor is well-known one in China, like ABM, SEW or so on..
- Such important electric components as breaker, contactor is of SE.
Spare Parts
- Such spare parts as wire rope guide, motor brake ring, yellow oil will be sent along delivery.
Package
- The whole electric hoist will be put in plywood box and fix by steel rope for transportation.
Delivery
- Delivery time for the whole crane is 5 working days after payment advance.
HS Code
- 84251100
Shipment
- Dispatch port can be Qingdao Port, Shanghai Port, Tianjin Port or so on China port.
- It can be put into container and transport by LCL or whole container (it's depend on quantity ordered).
- We can recommend our forward to our esteemed customer, and the forward appointed by our customer is also appreciated.
...
Your comments or other question, will be much welcome!
>>
