US$180.00-195.00
|
1 Piece
(MOQ)
|
Basic Info.
Grid Type
off-Grid Inverter
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Application
Electric Tools
Shell Material
Aluminum Alloy
Input Voltage
12V or 24V or 48V
Output Voltage
110V or 220V
Transport Package
Paper Box
Specification
ROHS CE FCC
Product Description

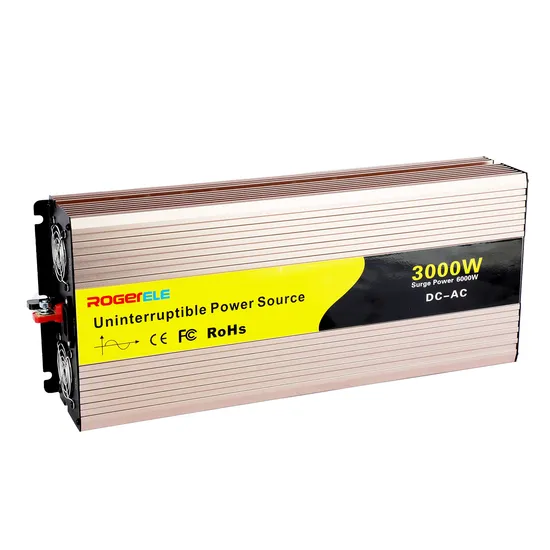

Model | REPU-3000 |
Rated power | 3000W |
Peak power | 6000W |
Input voltage | DC12V | DC24V | DC48V |
Output voltage | 100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% |
Unload current less than | 1A | 0.7A | 0.4A |
Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
Output waveform | Pure Sine Wave |
Waveform distortion | THD<3%(Linear load) |
USB port | QC3.0 | / |
Max.efficiency | 90% | 92% | 95% |
Charge current | 30A | 20A | 10A |
Input voltage range | 10-15.5V | 20-31V | 40-61V |
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V |
Low voltage protection | 10±0.5V | 20±0.5V | 40±15V |
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V |
Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V |
Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
Protect function | Low voltage | Alarm at first, voltage continuously reduce. LED Red light on & shut down |
Over voltage | LED Red light on, shut down |
Over load | LED Red light on, shut down |
Over temperature | Alarm at first, tempurature continuously rise. LED Red light on & shut down |
Short circuit | LED Red light on |
Input reverse polarity | Fuse burn-out |
Working temperature | -10°-+50° |
Storage temperature | -30°-+70° |
Dimension(mm) | 530*205*95 |
Packing(mm) | 552*250*150 |
Net./gross weight(g) | 6500/7200 |
QTY/Cth | 3Pcs |
Meas.Ctn(mm) | 570*270*480 |
Warranty | 2 years |
Cooling method | Intelligent air cooling |
1.Do you have you own factory?
A:Yes,we are professional manufacturer mainly in power inverter for about 10 years.Our factory is located in Yueqing,Zhejiang,China.
..............................................................................................................................................................
2,Q:Why your quotation is higher than other suppliers?
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
..............................................................................................................................................................
3,Q:How many categories does it have according to the output waveform ?
A:Type one: REM Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated quipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market
Type two: REP Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution.
.....................................................................................................................
4,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................
5,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
.....................................................................................................................
6. Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer before.
And we made many moulds for our customers alread.
About customized packing,we can put your Logo or other info on the packing.
>>
