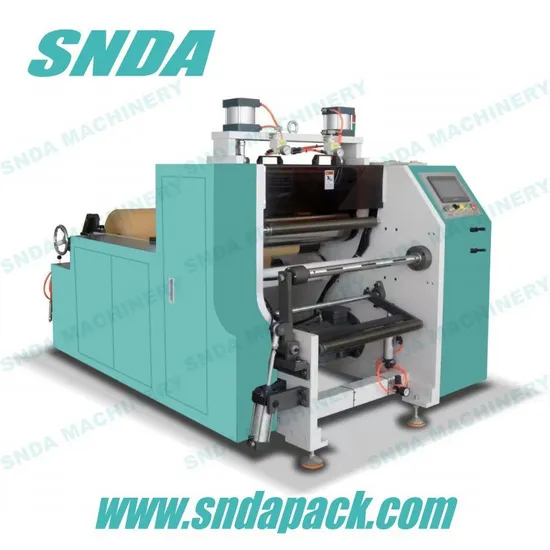

Kraft Paper Honeycomb Cushion Honeycomb Paper Cutting Machine

US$18,500.00-21,500.00 1 Set (MOQ)

Basic Info.

Model NO.
SD-PH600
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Dust-proof Material, Retail
Voltage
1/2/3 Phase, 220V/380V, 50/60 Hz
Power
6
Weight
1800kgs
Certification
CE
Max.Width of Material
520mm
Max.Diameter of Roll
1200mm
Transport Package
Wooden Box
Specification
2550*1350*1300mm
Trademark
SNDA, OEM
Origin
Wenzhou, China
HS Code
8441100000
Production Capacity
30 Sets Per Month

Product Description

Performance And Characteristics
Application
Honeycomb paper is eco-friendly and cost effective alternative for plastic wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.
Machine features 1. This machine is suitable for die cutting honeycomb paper,wrapping paper, shock-absorbing paper, kraft paper,fish net paper from 70g to 100g. 2. The unwinding,cutting and rewinding in one process.
3. Main motor equipped with Inverter for speed regulation.
4. Automatic ultrasonic web guide controller for unwinding.
5. Tension controlled by magnetic powder brake and clutch.
6. Automatic meter counting device,automatically stop after it reaches the length you set.
7. Pneumatic cylinder to control the cutting mould up and down.
8. Roll to sheet cutting is optional.(can match our paper wrapper)
Model SD-PH600
Max.width of mother roll 520mm
Max.diameter of mother roll 1200mm
Max.diameter of finished roll 300mm
Paper Core diameter(Rewind and unwind) 1"/1.5"/2"/3" in rewinder and 3inch(76mm) in unwinder
Cutting Speed 200m/min
Total power 3kw
Gross weight 1500kg
Overall dimensions 2550x1350x1300mm
