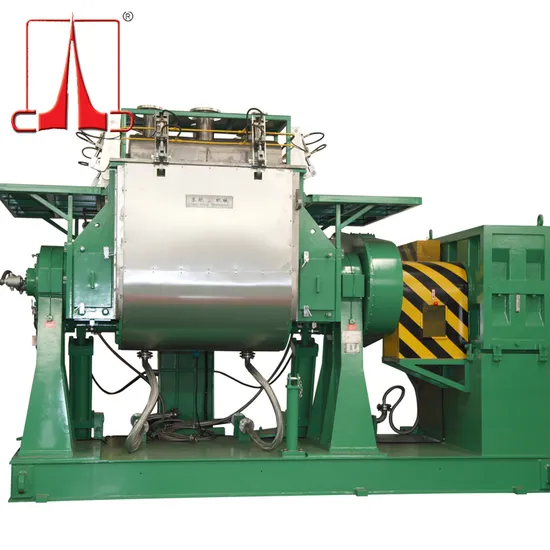

High Quality Advanced Multi Application Rubber Kneader

US$120,000.00-180,000.00 1 Set (MOQ)

Basic Info.

Model NO.
NH-1000
Control Type
PLC
Automatic Grade
Semi-Automatic
Power Source
Electric
Type
Rubber Mixer
Usage
Rubber
Volume
Customized
Post Service
Overseas Service Center Available
Gurantee
12 Months
Motor
75kw
Material
SUS304
Cooling
Water or Oil
Heating
Stream or Oil
Sealing
Mechanical
Discharge
Tilting or Screw
Transport Package
Film Packing
Specification
ISO9001: 2000
Trademark
LANHANG
Origin
China
HS Code
84743900
Production Capacity
100sets/Per Year

Product Description

Application of Rubber Kneader: Rubber solutions Putties Ceramic and catalytic converter compounds Activated carbon Carbon electrodes Hot-melt and other adhensive types Insulating compounds Sealants Printing inks Silicone rubber Pharmaceutical compounds Chocolate Chewing gum Chemical masterbatches Historically Universal Mixers have proven to be reliable mahines for the mixing and kneading of low-to high-viscosity products in many industries. Their working principle is based on two tangential counterrotating blades creating shear within the treated product in combination with the wall of the trough. Variation of the revs per minute, friction and position of the blades results in extremely effective mixing and kneading of th material. The versatility of the machine enables simultaneous processes within a mixing cycle like moistening, plasticising, dispersing, homogenising, melting, cooling, degassing, evaporation, dissolving and reacting.
Advantages of sigma kneader/mixer:
Optional mono-screw extruder models available Adjustable blade arm rotation Quick disassembly of the through-ends opposite the drive and blades for easy cleaning. Stainless steel construction. Simple installation - only a single power cable. Stainless steel with sight-glass cover for product viewing during mixing. Discharging: tilting type or screw type discharging. Sizes/volume could be customized. Why Choose Lanhang:
1. Since1992, with more than 20 years' professional experience
2. Overseas service center available (in Europe, Japan, Dubai, etc.)
3. International CE, SGS, IAF, CNAS certification
4. National high-tech enterprise / products
5. Various National Patent for Inventions Letters for rubber & plastic machinery
6. ISO9001:2008 management
Main Parameters: Volume could be customized.

Model
NH-5000
NH-3000
NH-2000
NH-1500
NH-500
Capacity (L)
5000
3000
2000
1500
500
Filling Coefficient
0.6
Agitator Blade
Sigma Z Blade Rotor
Rotating Speed
N1 35r/min N2 21r/min
N1 40r/min N2 21r/min
Jacket Pressure (Mpa)
≤ 0.3
Chamber Pressure (Mpa)
≤ -0.094
Cooling Type
Water Cooling
Heating Methods
Jacket Steam / Oil / Electricity Heating
Discharging Types
Hydraulic Tilting / Drop Door / Screw Extruding
Unique Function
Vacuum and Nitrogen-filled Kneading Available
Power Supply
AC 380V 50HZ 3P (customized available)
Motor Power (Kw)
300
220
160
132
90
Overall Dimension (mm)
3400x2400x1900
3400x2200x1800
3280x2100x1700
3200x2000x1650
3000x1980x1600
Weight (T)
25
15
11
9
6
