US$13,000.00-26,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO, SGS
Machine Name
Veneer Peeling Machine
Veneer Thickness
0.5mm - 3.6mm
Peeling Speed
40-100 M/Min
Usage
Peeling Wood Veneer
Advantage
Flat /Small Tolerance /Durable
Peeling Capacity
7 M3/Hour
Dimension
5800*2300*1500mm (L*W*H)
Transport Package
Container by Sea
Specification
Spindleless Peeling
Production Capacity
1, 200 Sets/Year
Packaging & Delivery
Package Size
580.00cm * 230.00cm * 150.00cm
Package Gross Weight
11200.000kg
Product Description
Product Description

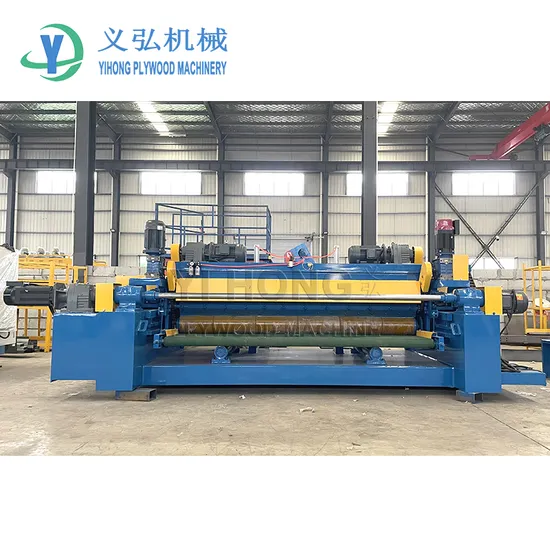

Veneer Peeling Machine
Veneer Peeling Machine is also named Rotary Cutting Machine, which widely used in plywood industrial. After stem was peeled bark by log debarker machine, the cylinder logs will be peeled into veneer sheets by veneer peeling machine, and then cut into target width by the veneer clipper machine.
According to chuck type, veneer peeling machine would be classified to two type. spindle chuck and spind-less chuck.
The face / back veneer of plywood is required to be neat and smooth, so spindle peeling lathe machine is usually used; however plywood core veneer is required large quantity and flat surface, therefore spindle lees peeling lathe is specailly inquiry.
Generally, a complete plywood factory must purchase these two types of machines.
Spindle-less veneer peeling lathe is integrated peeling and cutting function. Peeling wood veneer while the logs are rotated by driving both single and double rollers. Meanwhile the internal rotary clipper performs precise cutting under PLC control.
Specification
Model | VP-DP130 | VP-DP260 |
Max.Log Length | 1400mm | 2800 mm |
Max.Log Diameter | Φ 550 mm | Φ 550 mm |
Min.Rod Diameter | Φ 28 mm | Φ 32 mm |
Peeling Speed | 50-120 m/min | 40-100 m/min |
Veneer Thickness | 0.5-4.0 mm | 0.5-3.6 mm |
Peeling Knife | 1500x18x16mm | 2900x18x16 mm |
Automatic Adjust thickness/width | Option | Option |
Hydraulic Knife Holder | Option | Option |
Production Capacity | 4 m3/h | 7 m3/h |
Total Power | 45.4KW | 60.0KW |
Total Weight | 6800KG | 11200KG |
Dimensions | 4800x2200x1500mm | 5800x2300x1500mm |
Product Advantages
Company Profile
Yihong Machinery Co., Ltd.
Yihong is ocated in Linyi City, China. manufacture complete veneer production line, such as veneer peeling machine, log debarking machine, veneer stacking machine, blade sharpening machine, log cutting machine and supply plywood production line, including veneer paving line, veneer composer, veneer patching machine, glue spreader, hot press and DD saw, meanwhile supply OSB flakers for OSB and particleboard production.
Since 1988, YH focus on the R&D and manufacturing of wood processing equipment. With exquisite technology and excellent product quality, we have won recognition from domestic and overseas customers. YH own import and export lience, over 20 years YH machine are exported to more than twenty countries and regions in Asia, Europe, Africa and Americas.
Great Project
Packaging & Shipping
FAQ
Q1. Are you manufacturer or trading company?
A1. We are munufacturer with export lience. Yihong machine have been sold to more than 30+ country with 30 years manufacturing experience, established satisfactory service branch.
Q2. How to ensure machine quality?
A2. All machine have to be tested well before shipment, then arrange overseas engineer install and test again. Ensure your machine running well .
Q3. What's your warranty?
A3. Machine body have 2 years warranty. always carry some spare parts when shipping, clients could change it easily.
Q4. How to buy machine?
A4. Tell us your factory, we will offer plan drawings and offer quotation. then overseas engineer will install machine to your plywood mill.
