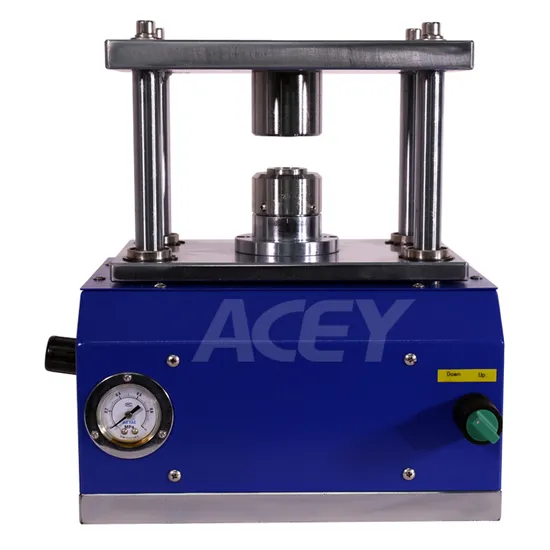

Lithium Battery Coin Cell Crimping Machine Pneumatic Button Battery Sealing Machine

US$1,380.00-1,490.00 1 Set (MOQ)

Basic Info.

Model NO.
ACEY-BPS-1
Automatic Grade
Pneumatic
Packaging Material
Bamboo, Wood
Application
Coin Cell Crimping
Type
Crimp Sealing Machine
Operating Force
Max 5kg
The Pressure of Gauge
About 80~100kg/Cm2
Dimensions
225mm X 180mm X 335mm
Weight
30kg
Max Speed
45PCS/Min
Transport Package
Plywood
Trademark
ACEY
Origin
Fujian, China
Production Capacity
500 Sets/Month

Product Description


Lithium Battery Coin Cell Crimping Machine Pneumatic Button Battery Sealing Machine
Product Description ACEY-BPS-1 is applied to the production of samples for the research and development of battery materials in the laboratory for button batteries and capacitor scientific research sealing, and can also be used for small batch trial production in factories. It adopts electric mode and saves effort. It can also be used for dry powder tableting, wet powder tableting, compression molding, riveting and other operations with different molds. A set of molds for CR20 series button batteries such as CR2032, CR2025, CR2016, etc.
Features *The lower mold is limited by a high-precision positioning ring to control the battery packaging height, so as to avoid excessive and unstable packaging pressure, which may cause damage to the battery and the sealing cup.
*The inner ring of the upper mold sealing cup is equipped with a screw spring centering mechanism to ensure that in case the battery is stuck and cannot be removed during sealing, the button battery can be forced out by twisting the top screw.
* Compressed air or inert gas cylinders are used to supply air. The compressed air exhaust is connected to prevent damage to the glove box atmosphere.
*Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
*Pure pneumatic operation, no electricity, convenient and easy to use;
Product Parameters
Product name Button battery pneumatic sealing machine
Model No. ACEY-BPS-1
Air source 0.6~0.8MPa argon, nitrogen gas cylinder, or compressed air (compressed air is not recommended in the glove box)
Exhaust design specially designed exhaust port, which can be connected externally through KF40 and other devices
Air consumption Japan.(The mold is limited by a high-precision positioning ring to control the height of the battery packaging, in case the packaging pressure is too large and unstable, which may cause damage to the battery sealing.)
Structural material air consumption for a single seal
Sealing pressure manual control valve control, pressure 1MPa, recommended pressure 0.7MP accuracy within ±0.5%
Dimensions 295mm X 200mm X 335mm
Weight 30kg


Q1:How to order?
A: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.We need to know the following information for your order before sending your Pl. Payment methods? T/T, L/C, D/P and so on.
1)Product information-quantity, specification(size, material, technological if needed and packing requirements etc.)
2)Shipping information-company name, street address, phone number,destination sea port.
Q2: How to control quality?
A,All the raw materials by IQC(Incoming Quality Control) before launch whole process into the process after the screening,
B, Process each ink in the process of IPQC(Input Process Quality Control)patrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q3:How do I install and operate the machine myself?
A: Our system development is based on the integrated development view, when you get the machine, just connect it to the power supply and the machine is ready to work, as the English software is already installed on the machine, all you need to do is to learn how to use the software, a complete English user manual will be sent to you with the machine.
Q4: How do I get technical support after purchase?
A: Our factory provides online technical support in English, you can get to know us easily online through Skype, Wechat, WhatsApp or E-mail. If you need any remote assistant support, we will support you through Team viewer software.
Q5:What's the warranty for the items?
A: We are very confident in our products and we package them very well so you will usually receive your order in perfect condition. The warranty on the equipment is one year (12 months) and if any part of the equipment is damaged within one year due to non-human factors, we will provide a replacement part free of charge.
Q6:Can I customize products?
A: Yes, OEM&ODM is available! we can provide not only standard machines but also customized machines according to your requirements. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
