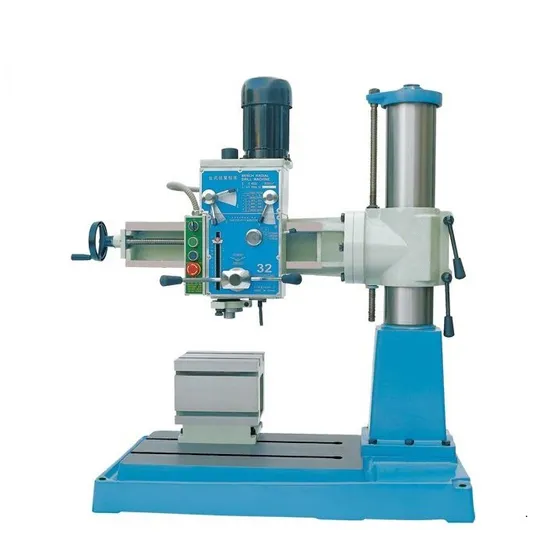

Z3032X7 radial drilling machine with CE

US$2,600.00
1-4 Pieces
US$2,550.00
5+ Pieces

Basic Info.

Model NO.
Z3032X7
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
40mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Capacity
32mm
Power
Hydraulic
Spindle Taper
Mt4
Spindle Speed
80-1200rpm
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
84592900
Production Capacity
50 Sets Monthly

Product Description

Main Specification:
Model Z3032×7//7P
Max. Drilling capacity(mm) 32
Max. Tapping capacity(mm) Cost lron20 Steel16
Distance spindle axis to column generating line 300~700
Diameter of column(mm) 150
Spindle taper MT3
Spindle travel 150
Spindle speeds range(mm) 100~1600
Spindle speeds series 8
Spindle feeds(r/min) 0.08,0.14,0.23
Rotary angle of rocker in hirizontal plane( °) 360
Distance between spindle nose to working surface of base(mm) 275~680
Dimension of worktable(mm) 250×250×250
Diameter of base(mm) 1050×550×120/1200×625×255
Overall size(mm) 1235×550×1195/1235×625×1230
Motor(w) 750 or 1100
G.W./N.W.(Kg) 475/380, 675/580
Packing dimension(cm) 123×62×124 / 127×69×138

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
