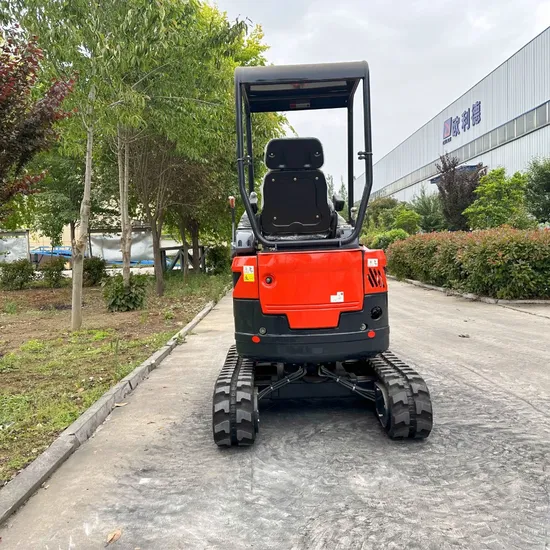

Excavators 2.0 Ton Mini Excavator with Thumb Mini Excavator Machines

Product Description

1000kg/1700kg/2000kg hydraulic mini excavator with competitive prices --CE ,EPA , Euro 5 We will provide :
1. English manual with sketches of machine structure of this standard model;
2. Full catalog of QILU mini excavators for reselling(pictures and videos for customers reselling);
3. Full videos about operating teaching including the after sale services steps;
4. Extra filters and toolbox for easy maitain;
5. Spare parts by air express(low weight);
6. 30% advance payment for production starting,the balance after the customer'sconfirmation by videos and pictures. We also have 1ton,1.5 ton, 1.6 ton,1.8 ton, 2 ton, 2.5ton and 3.5ton mini Excavator for you to choose!
Product Parameters

Standard configuration: Koop Euro V diesel engine/Continental tubing/Standard bucket Optional: Briggs & Stratton gasoline engine/Kubota D722 diesel engine /4 legs roof/Safety frame/Side swing/Chassis telescopic/Hydraulic oil radiator

Overall size	Unit	Standard	Overall size	Unit	Standard
Total Length	mm	2600	Operating Weight	kg	1000
Total Width	mm	860	Bucket Capacity	m³	0.022
Total Height	mm	1480	Engine		Koop
Clawler length	mm	1200	Displacement	L(cc)	0.499
Crawler width	mm	180	Rated Power	KW/rpm	8.2
Standard bucket width	mm	360	Swing speed	r/min	11
Max. Digging Height	mm	2580	Gradeability	°	25(30)
Max. Dumping Height	mm	1830	Ground pressure	kpa	0.35
Max. Digging Depth	mm	2000	Bucket digging force	KN	6.5
Max.Digging distance	mm	2850	Fuel tank capacity	L	5.5

Standard Configuration: Kubota D722 Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing Optional: Yanmar diesel engine/Fan cab/Heater cab/Chassis telescopic

Overall size	Unit	Standard	Overall size	Unit	Standard
Total Length	mm	3300	Operating Weight	kg	1700
Total Width	mm	1110	Bucket Capacity	m³	0.04
Total Height	mm	2360	Engine		KUBOTA
Clawler length	mm	1450	Displacement	L(cc)	0.898
Crawler width	mm	230	Rated Power	KW/rpm	10.2
Standard bucket width	mm	440	Swing speed	r/min	9
Max. Digging Height	mm	3310	Gradeability	°	58(30)
Max. Dumping Height	mm	2370	Ground pressure	kpa	27
Max. Digging Depth	mm	2120	Bucket digging force	KN	13.8
Max.Digging distance	mm	3640	Fuel tank capacity	L	18

Standard Configuration: Kubota Euro 5 D902 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Chassis telescopic/High and Low Speed Optional: Yanmar diesel engine/Fan cab/Heater cab

Overall size	Unit	Standard	Overall size	Unit	Standard
Total Length	mm	3570	Operating Weight	kg	2000
Total Width	mm	990/1240	Bucket Capacity	m³	0.04
Total Height	mm	2250	Engine		Yanmar
Clawler length	mm	1585	Displacement	L(cc)	0.898
Crawler width	mm	230	Rated Power	KW/rpm	11.8
Standard bucket width	mm	450	Walking speed (high/low)	KM/	2/3.5
Max. Digging Height	mm	3540	Swing speed	r/min	7.5
Max. Dumping Height	mm	2440	Gradeability	°	58(30)
Max. Digging Depth	mm	2310	Ground pressure	kpa	25.5
Max.Digging distance	mm	3900	Bucket digging force	KN	15.2
Wheel spacing	mm	1230	Fuel tank capacity	L	18

Standard Configuration: Yanmar Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Chassis telescopic/High and Low Speed Optional: Fan cab/AC cab

Overall size	Unit	Standard	Overall size	Unit	Standard
Total Length	mm	3850	Operating Weight	kg	2800kg
Total Width	mm	1300/1500	Bucket Capacity	m³	0.066
Total Height	mm	2380	Engine		Yanmar
Clawler length	mm	1860	Displacement	L(cc)	1.116
Crawler width	mm	250	Rated Power	KW/rpm	15
Standard bucket width	mm	460	Walking speed (high/low)	KM/	2.4/4.2
Max. Digging Height	mm	3880	Swing speed	r/min	9.5
Max. Dumping Height	mm	2550	Gradeability	°	58(30)
Max. Digging Depth	mm	2320	Ground pressure	kpa	28.4/0.29
Max.Digging distance	mm	4140	Bucket digging force	KN	18.4
Wheel spacing	mm	1475	Fuel tank capacity	L	28

QLN-30PRO Standard Configuration: Yanmar Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Steel Track/High and Low Speed QLN-35PRO Standard Configuration: Yanmar Euro 5 Diesel Engine/Continental Oil Pipe/Standard Bucket/4 legs roof/Side Swing/Steel Track/High and Low Speed/AC cab

Overall size	Unit	Standard	Overall size	Unit	Standard
Total Length	mm	4485	Operating Weight	kg	3515
Total Width	mm	1550	Bucket Capacity	m³	0.09
Total Height	mm	2440	Engine		Yanmar
Clawler length	mm	2100	Displacement	L(cc)	1.64
Crawler width	mm	300	Rated Power	KW/rpm	20.5
Standard bucket width	mm	520	Walking speed (high/low)	KM/	3.0/4.2
Max. Digging Height	mm	4600	Swing speed	r/min	8.5
Max. Dumping Height	mm	3175	Gradeability	°	58(30)
Max. Digging Depth	mm	2880	Ground pressure	kpa	28.4/0.20
Max.Digging distance	mm	4965	Bucket digging force	KN	26.5
Wheel spacing	mm	1665	Fuel tank capacity	L	40

Qilu respects quality and service, and wins a good reputation from machinery manufacturers with dedicated and professional services. 1. A leader in the machinery export industry such as construction machinery and agricultural machinery, with export experience in more than 50 countries and regions. 2. A comprehensive foreign trade export company with dozens of types of mechanical equipment, excavators, tractors, and loaders to meet the different needs of customers. 3. More than 100 salesmen, establish and maintain good relationship with customers.16 years of export experience, to provide customers with the best export services. 4. Multiple product managers track product usage, provide technical support, respond quickly, and provide 7*24 online customer service to solve customer feedback problems in a timely manner. 5. Overseas warehouses will be established overseas soon to provide overseas customers with the most professional and timely after-sales service. Provide other customized services according to the specific needs of dealers, and provide marketing and publicity support.

We are thrilled to announce that our company's participation in the 2022 BMW Exhibition in Germany was a great success! Our team showcased our latest excavator models to attendees from around the world and we were delighted to receive an overwhelming response.
We are proud to have received numerous orders for our excavators, which exceeded our expectations. As we continue to expand our business globally, we are actively seeking new partnerships with dealers who share our passion for quality equipment and exceptional customer service.
If you are interested in becoming a dealer of our excavators or would like to learn more about our products, please do not hesitate to contact us. We would be happy to discuss the benefits of partnering with us and answer any questions you may have.

Once again, thank you for your interest in our excavators and we look forward to the opportunity of working together with you in the near future.
FAQ

Q:Are you a manufacturer or Trader ?
A:We are a professional manufacture , we have our own R&D team and sales team, we provide one-stop service.
Q:What is your payment term ?
A:We accept T/T, L/C at sight, Western Union, Paypal etc.
Q:How long is the validity of quotation ?
A:Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Q:What is your delivery time ?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days,It depend on the order quantity.
Q:Do you provide OEM/ODM Service ?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets
Q:Do you have CE certificate ?
A:Yes, most of our products have the CE certificate
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing ?
A:We will provide professional installation video to illustrate.Also provide manual.
Q:Do you offer a guarantee?A: Yes, we guarantee our products for one year. Provide after-sales service support and agricultural technical support.
Q: What is your MOQ?
A: 1 se

---
