Steel Pipe Making Machine Price

US$150,000.00-350,000.00 1 Set (MOQ)

Basic Info.

Customized
Customized
Application
Industry
Type
Pipe Welding Machine
Pipe O.D.
219-1220mm
Thickness
4-12mm
Coil O.D.
1000-1600 mm
Coil I.D.
508-760 mm
Coil Width
Max. 1000mm
Pipe Length
8-12 M
Mill Type
Front-Swing, Center Positioning
Transport Package
in Nude
Trademark
HUAYE
Origin
China
Production Capacity
15-30/Year

Product Description

Introduction:
SSAW spiral welded steel pipe machine is HUAYE most competitive, most mature technical characteristics product. Product specifications range from Φ25 mm to Φ3400 mm.
Many "FIRST-of-China" fully demonstrated HUAYE's strong technical advantages and cutting-edge technology research and development capabilities.
Production Flow:
Uncoiler → Peeler → Pinch leveler - Side guide roller - Shear and welder - Side guide roller -Rotary shear - Side guide roller - Delivery machine - Guide beam - Forming machine - ID welding - OD welding - Cut-off - Run out
Reference Project
Φ168-Φ1220 mm SSAW spiral welded steel pipe machine in Thailand
This spiral welded pipe mill has just finished installing and commissioning in Thailand, can produces spiral welded pipes of minimum diameter φ168 mm.
O.D. range: Φ168~Φ1220 mm
Wall thickness range: 4 ~12 mm
Pipe weight: Max. 4 T
Spiral angle: 40°~ 80°
Length: 8-12.5 m

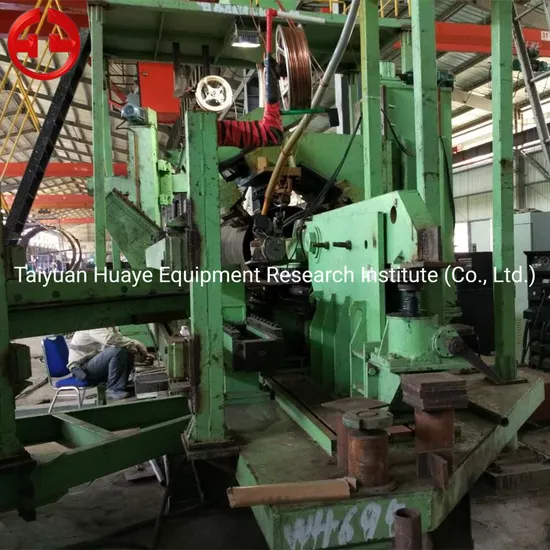

Photos below are from customer factory, it was received highly praise from customer. And now is well running and starts production.
