China Hot Sale 2m3 New Self Loading Concrete Mixer Hy220

Product Description

China Hot Sale 2m3 New Self Loading Concrete Mixer HY220
Features:
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with
a powerful engine and 2 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete
mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
Parameters:

Name	Item	Specification
	Net	6200 KG
	Transmission	4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity		0.4m3
		Control		Hydraulic
	Tilt angle	20%
	Speed	High		0-30KM/H
		Low		0-9KM/H
	Mini turning radius	4.5M/R
Engine	Type	Yunnei 4102
	Rated Power/RPM	76KW/2200RPM
	Max.Torque/RPM	360N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	2.0M3
	Bank Angle	16 °
Chute	Swing Angle	≥50°
	Angle control	Hydraulic
Loader control	Hydraulic 4 way stick
Tyre model	16/70-20 construction tyre
Electronic parts	Waterproof circuit
Hydraulic oil	France Total brand

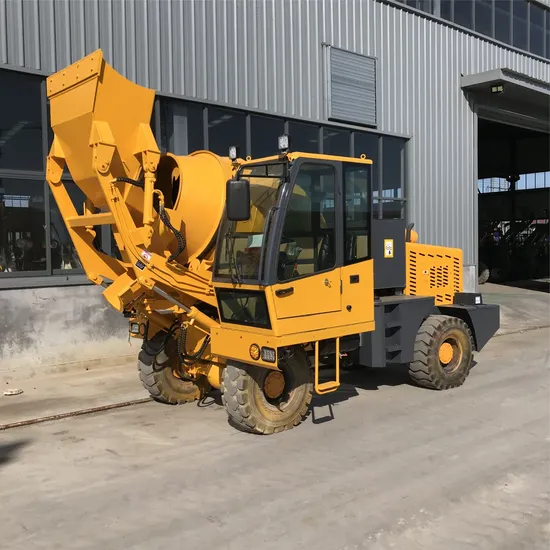

Pictures:
