China Brand 3axis CNC Milling Machine Vertical Machining Center Vmc650

US$26,600.00
1-2 unit
US$25,000.00
3+ unit

Basic Info.

Model NO.
VMC650
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
X/Y/Z Travel
600mm/500mm/500mm
Spindle Speed
10000rpm
Spindle Power
5.5/7.5kw
Spindle Taper
Bt40
Positioning Accuracy
0.003mm
Repeat Positioning Accuracy
0.0015mm
Table Size
800mm*500mm
Max. Table Loading
500kg
T Slot
5-18-100
Cutting Speed
1-10000mm/Min
X/Y/Z Rapid Speed
36/36/36 M/Min
Power
380V/220V/415V/50(60)Hz
Machine Net Weight
4.5t
Overall Dimension
2150mm*2235mm*2460mm
Transport Package
Wood Packaging
Trademark
OEM
Origin
China
HS Code
8457101000
Production Capacity
1000unit/Year

Packaging & Delivery

Package Size
300.00cm * 300.00cm * 300.00cm
Package Gross Weight
4800.000kg

Product Description


Product Description

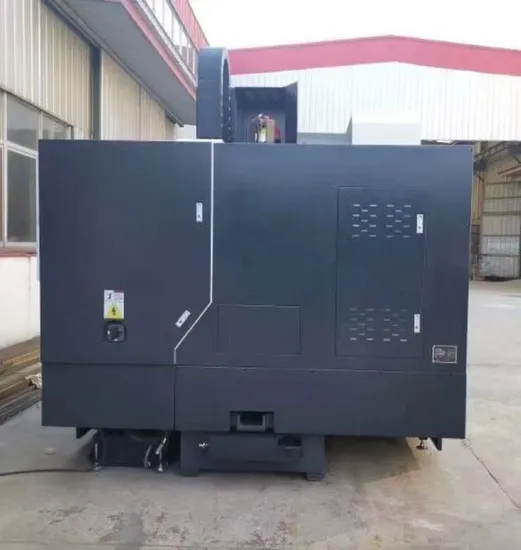

China Brand 3Axis CNC Milling Machine Vertical Machining Center VMC650
VMC650 is a Vertical Machining Center Machine that, as the name suggests, has vertically oriented machine tools. These machines are primarily utilized to turn raw blocks of metal, such as aluminum or steel, into machined components.
Machine Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

Product Parameters

Specifications unit VMC650
X/Y/Z travel mm 600/500/500
Distance from spindle nose to table surface mm 120-620
Distance from spindle center to column surface mm 550
Spindle Power kw 5.5/7.5
Spindle speed rpm 10000
Spindle Taper BT40 (Φ120)
Positioning Accuracy mm ±0.003
Repeat Positioning Accuracy mm ±0.0015
Table Size mm 800x500
Max.Table loading kg 500
T-Slot 5-18-100
X/Y/Z rapid speed M/min 36/36/36
Cutting Speed mm/min 1-10000
X/Y/Z axes ball screw diameter Φ40
X/Y/Z axes servo motor power kw 2.0/2.0/3.0
Linear width X/Y/Z mm 35/35/35
Guideway No. X/Y/Z 2/2/2
Slider No. X/Y/Z 4/4/4
Max.power consumption kw 11
Air Mpa 0.5-0.7
Power 380V/220V/415V/50(60)Hz/3ph
Ambient Temperature 0ºC-42ºC
Relative humidity ≤80%
Machine Net Weight T 4.5
Overall Dimension mm 2150x2235x2460

Detailed Photos
Packaging & Shipping

Company Profile
Weifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprise, metal cutting machine tools, metal cutting tools, Grinder abrasives, measuring tools, machine tool functional parts, numerical control devices, metal forming machine tools, lubricating grease, and oil Machine function parts, numerical control devices (CNC), Metal forming machine, mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider.
FAQ
Q1:Are you a factory or a Trade Company?A1: We are Industry and trade integration. Q2: Is your company accept customization?A2: Yes, we can undertake to customize and process, including non-standard products(We could make it according to your request.). Q3: What is the Payment Term?A3: FOB, CFR, and CIF are all acceptable. Q4: When is the delivery time?A4: A) The machine Tools & Accessories could be arranged for delivery within 3 days after your full payment, B) The Machines Could Be arranged for delivery Within 20 -30 Days(Include Production Time).Q5: What are the shipping ways?A5: International express, by air, by sea are all ok.Q6.What kind of packaging?A6: We use plywood boxes to ensure the packaging quality is durable, fully protects the safety of the cabinet, the appearance of bright and clean, smooth and beautiful, durable, low cost, heavy load, fear of the sun, and rain without moths and so on.Q7: What is your warranty for the machine?A7: The warranty for the machine is 12 months. Warranty claim for replaced parts free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under a warranty
