Basic Info.
Automatic Grade
Automatic
Computer Control Panel
Computer Control Panel
Product Name
Egg Tray Machine
Machine Type
Reciprocating Forming Type
Machine Capacity
700PCS/H
Machine Application
Chicken Farms, Paper Recycle
Advantage
Many Type to Be Chosen
Automation
Semi-Automatic /Automatic/Full Automatic
End-Product
Egg Tray/ Egg Carton/Shoe Tray/ Apple Tray
Raw Material
Any Waste Paper
Transport Package
in Container
Production Capacity
700PCS/H
Product Description

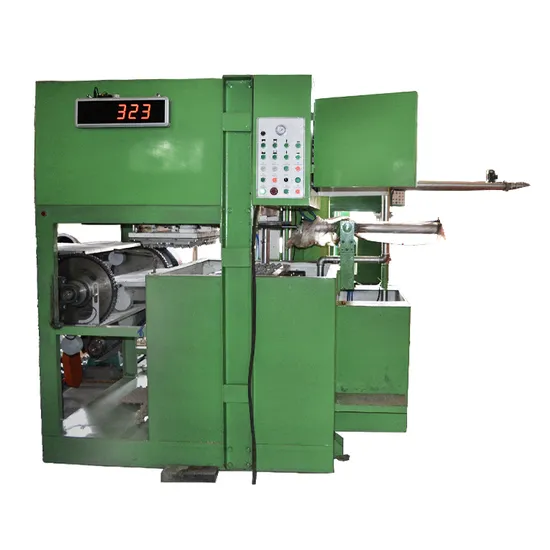

20-60kw Paper Egg Carton Making Machine/ Pulp Molding Machine with Germany Brand Valve
This type semi-automic egg tray machine production line is not equipped with drying system, after mixing pulp process and automatic forming process, the wet egg trays will be moved to another place for drying by workers, and then prodcut can be dried by sunshine.
the semi-automatic egg tray production line is suitable for all kinds of paper pulp molded product.
It includes forllowing parts:
1. Pulping System:
Put the waster paper into the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2. Forming System :
The vacuum pump will offer the vacuum to make the forming mould absorb the pulp from the pulp tank. One PLC cabinet will control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will drop down from the mould .Then the products is delivered to the drying line automatically; the water will go back to the water pool recycled.
Technical Specification of the Egg tray machine
1. | Egg tray mould quantity | 2pcs |
2. | Raw material | Waste paper |
3. | Output for egg tray | 700pcs/hour |
4. | Net weight per piece (gram) | 70g-75g |
5. | waste paper consumption | 0.053ton / hour |
6. | water consumption | 0.15ton/hour |
7. | Operators number | 3-4workers |
8. | Area of workshop | Without dryer | ≥100 M²
|
9. | Capacity of power | Without dryer | 30KW |
10. | Machine length | Without dryer | 8meters |
11. | Size of container | Without dryer | 20ft*1 |
| Main parts |
Pulping system | Including : water pool-1pcs mix pool-1pcs mill pulp pump -1set water pump-2sets pulp pump -2sets 1M³pulping machine -1sets |
Forming system | Including 2 moulds forming machine -1set Vacuum pump-1set Compressor -1set Washer -1set Vacuum tank-1pcs Air tank-1pcs |
| Description | Quantity | Motor power |
Pulping system | Pulping machine | 1set | 7.5kw |
Pulp Pump | 1set | 4kw |
Pulp pump | 1set | 1.5kw |
Mill pulp pump | 1set | 7.5kw |
Water pump | 2sets | 0.75kw*2=1.5kw |
Mixer | 1set | 1.5kw |
Pulp pool and Water pool | 1set | |
Forming system | Moulding machine | 1set | 2 sets Aluminum forming molds |
Vacuum pump | 1set | 7.5kw |
Mold Washer | 1set | 1.1kw |
Pulp pump | 1set | 1.5kw |
Air Compressor | 1set | 11kw |
Vacuum tank | 1set | |
Air tank | 1set | |
| Electric Control Cabinet | 1 Set | |
>>
