Automatic Woodworking Precision Cross Cut off Saw Sawmill Machine for Cutting Wood

Product Description

Product Description

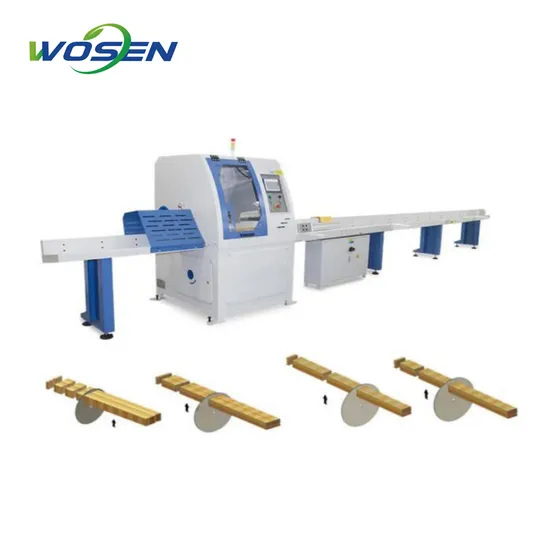

Automatic Wood Cut Off Saw Machine

Model	WS450	WS600
Saw Blade diameter	450mm	600mm
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting length	2m/4m/6m	2m/4m/6m
Cutting width	30- 200mm	30- 300mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw	11kw
Total power	8.5kw	12.5kw

Client Feedback

Related Machines
1.Pneumatic Cut Off Saw

Specification	MJ274	MJ276
Max Cutting Width	150mm(Thick about 110mm) 300mm(Thick about 40mm)	520mm(Thick about 40mm) 200mm(Thick about170mm)
Saw Blade Diameter	450MM	600MM
Motor Power	5.5KW	7.5KW
Overall Dimension	2900*930*1100MM	4250*1150*1300MM
Weight	300KG	550KG

2.Wood Pallet Nailing Machine

Pallet Type	American/Euro Standard Pallet
Nail Gun Specification	70 Nail Gun *3 units
Air Pressure	0.8MPA
Nail Plate Capacity	3000 PCS nails coil nails
Receiving Material	Automatic Stacking(Pneumatic Type)
Connection mode	Voltage 380V
Operation Mode	PLC Operation
Production Mode	Manual feeding/automatic nail/automatic stacking
Processing Range	800-1250mm can adjust
Nailing Quantity	1, 2, 3 PCS can setting

3.Wood Pallet Stacker

Specification	WSPS1300
Process Size	800-1300mm
Pressure	0.8MPA
Stack Speed	4-8 Second/Time
Motor	1.5KW
Voltage	220V Standard (can customize)
Production Mode	Automatic Feeding

Company Profile
Our company is China leading manufacturer of woodworking machinery,we are able to offer professional woodworking machinery to customers.
Our products are mainly included wood crusher,band saw, circular sawmill, wood pallet machine, wood pellet machine, wood planer, production line and so on. We have exported our machines to more than 70 countries and regions around the world, such as Southeast Asia, North America, South America, Africa, Europe, Middle East, Australia, Russia and so on.
In order to meet different requirements of customers, we have been constantly developing and improving product technology, quality and after-sale service. And we able to customize machine according to customer requirements, so it has won the favor of many customers.
If you are interested in our machine, please feel free to contact us.
FAQ
1.What is the machine delivery time ?Delivery time is 10-15 days.2.What is the payment term ?Payment term is 30% TT advance and balance before delivery machine.3.Could the machine customized according to client requirements ?Yes, can customize according to client requirements.4.What terms of trade can provide?We accept EXW, FOB, CIF, Express Delivery.5. What is your company business scope ?Our company main sell woodworking machine, including wood crusher, wood sawmill, wood pallet machine, wood pellet machine, drying kiln, wood planer and so on.
