Large Scale Afforestation Equipment Mini Excavator

US$10,100.00
1-4 Pieces
US$9,900.00
5+ Pieces

Basic Info.

Model NO.
PAB20E
Type
Crawler Excavator
Usage
Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.05
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Color
Customized
Operating Weight
1850kg
Engine
Laidong385
Track Width
230mm
Gauge
1100mm
Transport Package
Container
Specification
3800*1400*2300
Trademark
PAB
Origin
China
HS Code
8429521200
Production Capacity
10/Day

Product Description

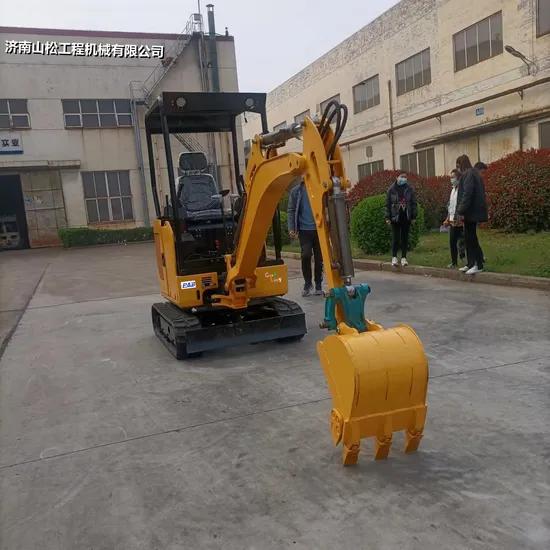

1850kg Mini Excavator Mini excavators are widely used in farms, farmland, rural construction, municipal construction, orchards, landscaping, afforestation, road maintenance, pipeline laying, material handling, trenching, earthwork, crushing, demolition and other fields. Comfortable and safe operation, energy saving, environmental protection and high efficiency.
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
There are 7 types of mini excavators, each model can be equipped with different engines, boom side sway, chassis extension and so on;

Operating Weight
kg 1850 Minimum Ground Clearance mm 300

Bucket Capacity
0.05 Track Width mm 230

Maximum Digging Force
kn 18 Gauge mm 1100

Slewing speed
rpm 10 Maximum unloading height mm 2380

Engine
Laidong385 18.1kw/2200rpm Track grounding length mm 1580
Walking Speed
km/h 3 Maximum excavation height mm 3350

Grounding specific voltage
kpa 22 Maximum excavation depth mm 2050

Hydraulic tank capacity
L 35 Maximum excavation range mm 4350

Maximum flow
L/cc 30 Minimum turning radius of tail mm 1120

Rated working pressure
mpa 20 Minimum radius of working device mm 1050

Length* width*height
mm 3800*1400*2300 Gradeability ° 30

Product Application:
Our Mini hydraulic excavator has stable performance and convenient operation. Chang Chai and XR2100 engines can meet the domestic exhaust emission standards, and new cooling fans and large silencers are installed to meet the European noise standards. At the same time, give consideration to the development of urban environmental protection.
Packing or Shipping
1. Packed in wooden cases or containers or according to customer's requirements.
2. You can entrust our freight forwarder, you can also use your own freight forwarder, and we can also provide door-to-door transportation.
1.What's the MOQ? 1 piece or unit.

2. How about the delivery time?
Based on order quantity, normally it takes 20 days for production. Only 3 to 7 days if we have stock on your request size.

3. How many years have you been producing hydraulic breakers and parts?
Over 20 years.

4. Quality & Service:
There will be strict inspection and testing for every order before shipping out. Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded). Free replacement will provide once the failure confirmed caused by our product quality.

5. What's the payment term?
T/T (Telegraphic Transfer) or Western Union. Pictures of products and packages will be sent to our customers before balance is paid.

6. Can you produce according to customers' design?
Yes, we can do customized products.

7. How about the package?
Standard exporting package.
8.Welcome to contact us.
