Mbbr/Mbr Integrated Wast Integrated Sewage Treatment Equipment Wastewater Waste Water OEM

Product Description

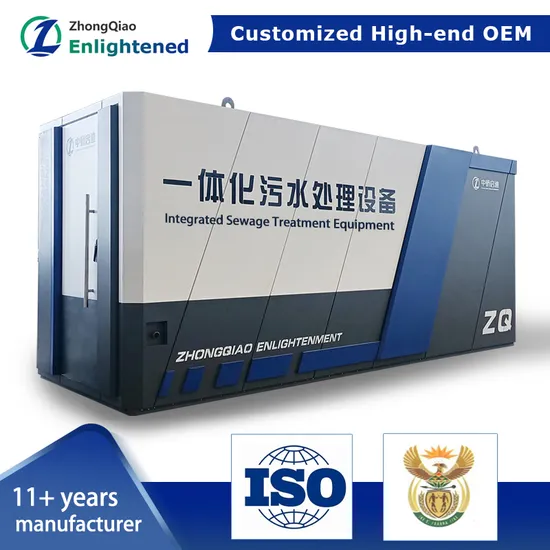

Zhong Qiao Box Integrated Sewage Treatment Equipment Product Description
I. Product Overview Zhong Qiao Box Integrated Sewage Treatment Equipment is a high-efficiency, energy-saving, and environmentally friendly sewage treatment equipment independently developed and produced by Shandong Zhong Qiao Enlightenment Environmental Protection Equipment Co., Ltd. This equipment integrates multiple functions such as sewage treatment, sludge-water separation, and disinfection, and is widely used in the treatment of various industrial and domestic sewage.
II. Technical Features
1,The decorative panels are formed from cold-rolled steel sheets through CNC bending in one step. The anti-corrosion treatment uses powder electrostatic spraying, followed by melting, leveling, and curing at 200 degrees Celsius, resulting in a smooth and bright appearance.
2,The decorative panels are reinforced with square steel supports between the panels and the main body. They can be equipped with electric heating and insulation materials like rubber-plastic or rock wool, ensuring normal operation even in the cold regions of northern areas.
3, The surface treatment is highly precise, allowing for custom patterns or logos according to requirements. The panels can be designed in various styles such as classical, modern, trendy, or landscape, and can also feature hand-painted designs. This transforms our equipment from mere wastewater treatment units into attractive landscape features.
III. Application Range
The Zhong Qiao integrated sewage treatment equipment is widely used in tourist attractions, farm stays, hotels, guesthouses, service areas, hospitals, towns, and rural areas, as well as any other locations where a high level of aesthetic appeal is required.
IV. Technical Specifications

Model	Treatment Capacity (m³/day)	Dimensions (L×W×H) (mm)	Equipment Weight (t)	Operating Weight (t)	Total Installed Power (kw)	Operating Power (kw)	Operating Cost (CNY/ton)	Operating Cost (CNY/day)	Cable Specifications (mm²)	Floor Area (m²)
WSZ-0.25	5	2500×1000×1500	0.97	4.72	3.84	2.72	3.20	16.01	1.5	19
WSZ-0.5	10	2500×1500×2000	1.65	9.15	3.84	2.72	1.60	16.01	1.5	21
WSZ-1	20	5000×1500×2000	2.50	17.50	4.60	3.10	0.92	18.47	2.5	26
WSZ-1.25	30	5000×2000×2000	2.90	21.70	6.10	3.85	0.78	23.33	2.5	26
WSZ-1.67	40	6500×2000×2000	4.36	30.36	6.10	3.85	0.68	27.22	2.5	31
WSZ-2	50	6500×2000×2500	5.07	37.57	6.10	3.85	0.54	27.22	2.5	34
WSZ-2.5	60	7500×2000×2500	5.58	43.27	7.50	4.55	0.54	32.51	4	36
WSZ-3	70	7000×2500×2500	6.31	51.31	7.50	4.55	0.46	32.51	4	41
WSZ-3.5	80	8000×2500×2500	6.88	57.50	9.10	5.35	0.48	38.56	4	45
WSZ-4	100	10000×2500×2500	8.30	72.98	9.10	5.35	0.44	44.06	4	52
WSZ-5	120	11500×2500×2700	9.65	85.59	14.85	8.60	0.62	74.30	6	60
WSZ-6	150	12000×3000×2700	11.22	108.42	14.85	8.60	0.50	74.30	6	72
WSZ-7	170	16000×2500×2700 (2 units)	12.26	121.61	14.85	8.60	0.44	74.30	6	77
WSZ-8	200	20000×2500×2500 (2 units)	15.53	142.09	15.55	9.30	0.41	82.37	6	91
WSZ-10	250	24000×2500×2700 (2 units)	17.30	175.25	21.80	21.80	0.43	108.29	10	110
WSZ-12.5	300	24000×3000×2700 (2 units)	20.05	210.40	21.80	21.80	0.36	108.29	10	127
WSZ-15	360	34500×2500×2700 (3 units)	25.11	251.91	30.90	17.70	0.41	146.59	10	145
WSZ-17	400	37500×2500×2700 (3 units)	27.24	278.34	30.90	17.70	0.37	146.59	10	159
WSZ-20	500	39000×3000×2700 (3 units)	33.71	349.61	30.90	17.70	0.29	146.59	10	193

Note: Custom non-standard sizes are available. The dimensions in the table are for reference only; actual dimensions will prevail.
