Small Size and Explosion-Proof NDIR CH3Br Sensor for Industrial CH3Br Gas Detection and Analysis

Product Details

Product Description

Product Description

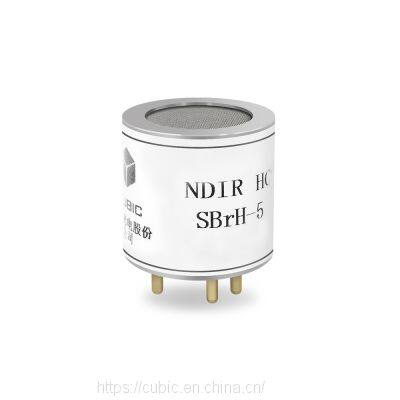

IntroductionThe miniature NDIR CH3Br sensor SBrH detects methyl bromide (CH3Br) concentration from 0 to 5% based on NDIR technology, which is superior to thermal catalysis and heat conduction technology. It has the advantages of convenient operation, accurate measurement, reliable operation, simultaneous output of voltage and serial port, and dual beam design. To meet the different requirements of industrial field and laboratory measurement, it is widely used in gas detection and analysis in fields such as fumigation, chemical industry, coal mine, medical treatment, and laboratory.
Features1.NDIR technology, with long life and full measurement range
2.Meet the explosion-proof grade Ex iaⅡC T4 Ga
3.Internal full range temperature compensation
4.Diffusion sampling, stable performance
5.High precision, high resolution 0.01%
6.Small size and fast response
7.Antiseptic
8.Easy to install and reduce maintenance
9.Compatible with digital and analog voltage signal output
Specifications

Measurement range	0~5% vol
Measurement method	NDIR
Accuracy	0-1%: ±0.06%Vol; 1-5%: ±6% of reading
Resolution	0.01%
Working voltage	3.5-6VDC
Output voltage	0.4V-2VDC/ RS232
Response time	T90 <25s
Zero repeatability	±1%FS (20℃)
Sensitivity repeatability	0~5%vol: 0.1% (20℃)
Working temperature	-40℃-70℃

ApplicationsFire Alarm
Underground Pipe Network
Mine Alarm
Oil And Gas Recovery

---
