High Quality Hand Wire Rope Pulling Hoist 1600kg Tirfor

Product Description

High quality hand wire rope pulling hoist 1600kg tirfor
Product descriptions: The manual wire rope puller is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.
The principle function of the wire puller is that the rope passes through mechanical jaws rather than being reeled on a drum of a puller or conventional winch.
The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.
A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.
This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.
The load is held securely at all times.
Product parameter as belows:

Model	LJ-800	LJ-1600	LJ-3200	LJ-5400
Vertical lifting load	800kg	1600kg	3200kg	5400
Horizontal lifting load	1200kg	2400kg	4000kg	6750
The max force of full load	≤343N	≤441N	≤441N	≤745N
The max travel of handle	≥52mm	≥55mm	≥28mm	≥30mm
N.W. of machine	15kg	30kg	60kg	110kg
Size	420×80	550×100	660×110	930×480
	×250mm	×280mm	×380mm	×152mm
Dia of wire rope	8mm	11mm	16mm	20mm

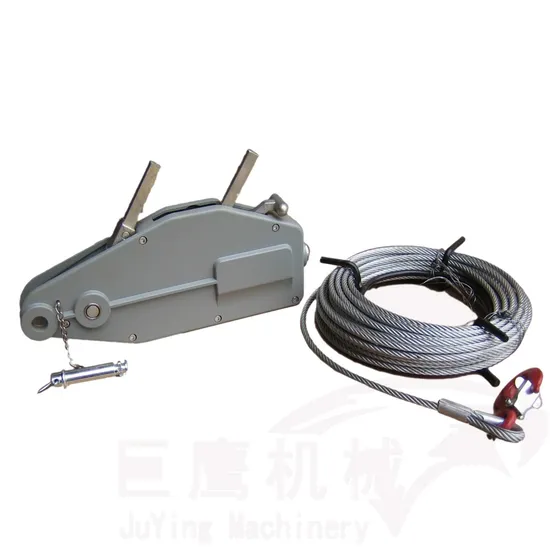

Prouduct pics as belows:
Tirfor machine features:
1.CE,TUV certificate
2.Wire rope: High quality
3.Hook: Deep Forged, High alloy steel
4.Gear: High standard Gear steel
5.Cover: Aluminium alloy
6.Surface treatment: Powder coating
7.Longer life span
For more any questions please feel free to contact us at any time!

---
