High Pressure Factory Price Oil Resistant Promotional Smooth/Wrapped 2 Wire High-Tensile Steel Wire SAE100r2 at/DIN En853 2sn Rubber Hydraulic Hose Washing Hose

Product Description

High pressure Factory Price Oil Resistant Promotional Smooth/wrapped 2 Wire High-Tensile Steel Wire SAE100R2/DIN En853 2sn Rubber Hydraulic Hose Washing hoseProduct DescriptionInner tuber: Black, oil resistant, synthetic rubber
Reinforcement: Two braid of high-tensile wire
Outer tube: Black, oil, abrasion and weather resistant, synthetic rubber.
Wapped Surface or Smooth Surface
Temperature range: -40ºC to +100ºC(-40ºF to +212ºF) .

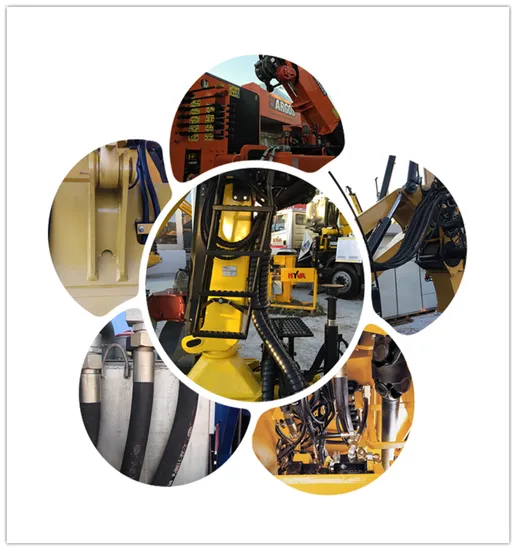

Application: For the delivery of hydraulic liquids or water based liquids.
Product ParametersSAE 100 R2 AT

Code	Nominal Diameter		I.D (mm)		W.D (mm)		O.D(mm)			W.P		Test Pressure		B.P		Min.B.R	Weight
							A Type		AT Type
	mm	inch	min	max	min	max	min	max	max	Mpa	PSI	Mpa	PSI	Mpa	PSI	mm	Kg/m
SDR2-05	5.0	3/16	4.6	5.4	10.6	11.7	15.1	16.7	14.1	35.0	5075	70.0	10150	140.0	20300	90	0.32
SDR2-06	6.3	1/4	6.2	7.0	12.1	13.3	16.7	18.3	15.7	35.0	5075	70.0	10150	140.0	20300	100	0.36
SDR2-08	8.0	5/16	7.7	8.5	13.7	14.9	18.3	19.8	17.3	29.7	4310	59.5	8630	119.0	17255	115	0.45
SDR2-10	10.0	3/8	9.3	10.1	16.1	17.3	20.6	22.2	19.7	28.0	4060	56.0	8120	112.0	16240	125	0.54
SDR2-13	12.5	1/2	12.3	13.5	19.0	20.6	23.8	25.4	23.1	24.5	3550	49.0	7110	98.0	14210	180	0.68
SDR2-16	16.0	5/8	15.5	16.7	22.2	23.8	27.0	28.6	26.3	19.2	2780	38.5	5580	77.0	11165	205	0.80
SDR2-19	19.0	3/4	18.6	19.8	26.2	27.8	31.0	32.5	30.2	15.7	2280	31.5	4570	63.0	9135	240	0.94
SDR2-25	25.0	1	25.0	26.4	34.1	35.7	38.5	40.9	38.9	14.0	2030	28.0	4060	56.0	8120	300	1.35
SDR2-32	31.5	1.1/4	31.4	33.0	43.2	45.6	49.2	52.4	49.6	11.3	1640	22.7	3290	45.5	6600	420	2.15
SDR2-38	38.0	1.1/2	37.7	39.3	49.6	52.0	55.6	58.7	56.0	8.7	1260	17.5	2540	43.5	5075	500	2.65
SDR2-51	51.0	2	50.4	52.0	62.3	64.7	68.3	71.4	68.6	7.8	1130	15.7	2280	31.5	4570	630	3.42

DIN EN 853-2SN

Code	Nominal Diameter		I.D (mm)		W.D (mm)		O.D(mm)			W.P		Test Pressure		B.P		Min.B.R	Weight
							2ST Type		2SN Type
	mm	inch	min	max	min	max	min	max	max	Mpa	PSI	Mpa	PSI	Mpa	PSI	mm	Kg/m
SD2SN-05	5.0	3/16	4.6	5.4	10.6	11.7	15.1	16.7	14.1	41.5	6020	83	12035	165	23925	90	0.32
SD2SN-06	6.3	1/4	6.2	7.0	12.1	13.3	16.7	18.3	15.7	40.0	5800	80.0	11600	160.0	23200	100	0.36
SD2SN-08	8.0	5/16	7.7	8.5	13.7	14.9	18.3	19.8	17.3	35.0	5075	70	10150	140.0	20300	115	0.45
SD2SN-10	10.0	3/8	9.3	10.1	16.1	17.3	20.6	22.2	19.7	33.0	4785	66.0	9570	132.0	19140	130	0.54
SD2SN-13	12.5	1/2	12.3	13.5	19.0	20.6	23.8	25.4	23.1	27.5	3990	55	7975	110	15950	180	0.68
SD2SN-16	16.0	5/8	15.5	16.7	22.2	23.8	27.0	28.6	26.3	25.0	3625	50.0	7250	100.0	14500	200	0.80
SD2SN-19	19.0	3/4	18.6	19.8	26.2	27.8	31.0	32.5	30.1	21.5	3120	43	6235	85	12325	240	0.94
SD2SN-25	25.0	1	25.0	26.4	34.1	35.7	38.5	40.9	38.9	16.5	2390	32.5	4710	65.0	9425	300	1.35
SD2SN-32	31.5	1.1/4	31.4	33.0	43.2	45.6	49.2	52.4	49.5	12.5	1810	25	3625	50	7250	420	2.15
SD2SN-38	38.0	1.1/2	37.7	39.3	49.6	52.0	55.6	58.7	55.9	9.0	1305	18.0	2310	36.0	5220	500	2.65
SD2SN-51	51.0	2	50.4	52.0	62.3	64.7	68.3	71.4	68.6	8.0	1160	16	2320	32	4640	630	3.42

Detailed PhotossectionCoverPrinting
Packaging & ShippingThe packaging will use woven bags and plastic film. According to the customer's requirements, special packaging can be used.
CertificationsCompany ProfileHebei Sierda Rubber & Plastic Product Co., Ltd.is a professional manufacture and exporter of hydraulic hose, Industrial rubber hose, pvc hose and pneumatic hose in China. For over 14 years, we provide solutions to individual problems by
working closely with our domestic and international customers. Our customers have praised us for our repeated ability to meet
short delivery deadlines with exceptional quality produces and competitive price. Due to our responsive customer service, we have become five star suppliers for some customers. Besides good quality and services, our operation philosophy also focuses on to
be most respected in the industry, not only in China but throughout the world.
Sierdahose products are sold in the Europe, the U.S.A, South America, Russia, Middle East, South America, Russia, Australasia, Africa and more than 20 countries. Our professional team aims to provide you:· One-Stop Exporting for Hydraulic hose, Industrial hose, pneumatic hose, and pvc hose.· Whole solutions in Hose industry;· Consistent quality in accordance with International Standard;· Excellent after-sale services in industry. Welcome to sierda hose, With our excellent services and exceptional products, we are looking forward to establishing win-win cooperation with customers all around the world. FAQ
(1) How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of
your order.
(2) What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.
(3) What is your sample policy?
A: Usually the sample is free of charge, but the customers have to pay for the freight charge.
(4) What is your payment term?
A: 1. T/T 30% in advance, and 70% before delivery or against copy of documents.

2. L/C at sight.
(5) Do you have quality certificate?
A: Yes, we have ISO, SGS, CE and related test report.
(6) Do you test all your goods before delivery?
A: Yes of course, we have 100% burst pressure test and impulse tests before delivery.
(7) How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
