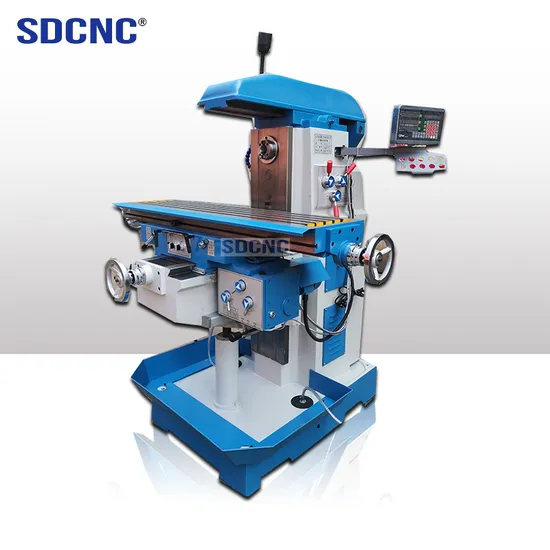

Milling Machines X6128 Metal Milling Machine Milling Machinery

Product Description

The main performance characteristics :
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application :
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling
cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane,
inclined plane, grooves, holes, and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments,
automobiles, motorcycles and other industries of the ideal processing equipment. Product Parameters
Product main technical parameters:

Specifications	Units	X6128A	X6128C
Table size	mm	1200×280	1200×280
Table stroke	mm	620/260/400	620/260/400
T-type slot (numbers / width /space)	mm	5/14/50	5/14/50
Distance from spindle axis to table surface	mm	110~510	110~510
Spindle taper		7:24 IS040	7:24 IS040
Spindle speed range	rpm	8steps 13~265	8 steps 32~840
Spindle motor power	KW	3	3
Overall dimensions	mm	1725×1450×1750	1725×1450×1750
Machine weight	Kg	1350	1380

---
