Laboratory packaging drop Double Wing Drop Test Machine

Product Details

Product Description

Product Description

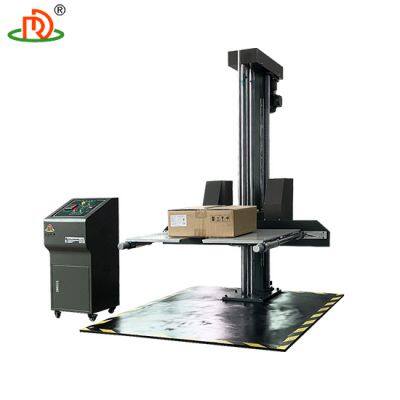

Drop Weight Impact Testing Machine During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And the machine simulates the drop/ fall of a finished product to evaluate the damage. Standard test of packaged freights (surfaces,corners, and edges), etc. can be performed efficiently with a high accuracy.
FEATURES
1. Outside material: advanced paint coat.
2. It adopts double wings to fix the products well when testing.
3. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring+electromagnet)+dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder +hydraulic pressure buffering device)
4. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control.
5. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs.
SPECIFICATION

Item	Description
Drop height	400-1500mm (can be customized)
Display method	Digital display
Max. weight of sample	60kg (can be customized)
Max. size of sample	(L*W*H) 800*800*800mm
Drop panel area	1400x1200mm (material is Solid steel plate)
Control box dimension	(L*W*H) 350*350*1100mm
Deviation of drop horizon	Less than 1°
Machine size	(L*W*H)1400*1200*2200mm

---
