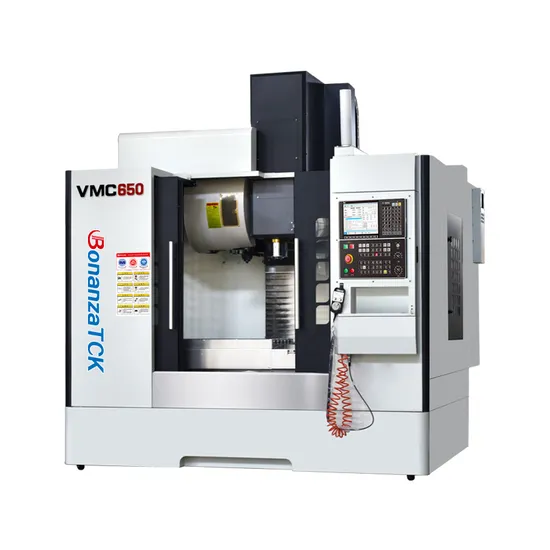

Vmc650 Chinese Three-Axis CNC Milling Machine Machining Center Milling Machine

Product Description

Product Parameters

		VMC650
Work table	Worktable size	1000×400	mm
	Worktable max.load	400	kg
	T-slot (number*width*distance)	3-18-120	mm
Travel	X-axis travel	650	mm
	Y-axis travel	400	mm
	Z-axis travel	550	mm
	Distance from spindle nose to table surface	100-650	mm
	Distance from spindle center to column guideway	485	mm
Spindle	Spindle taper	BT40-120
	Spindle speed	8000	r/min
	Spindle motor	5.5	kW
Feed Speed	X/Y/Z-axis rapid feed	32/32/32	m/min
	Cutting feed speed	1-10000	mm/min
Tool magazine	Tools change way	Arm type ATC
	Tool number	16	pcs
	Tool change time	2.5	s
Precision	test standard	JISB6336-4:2000/ GB/T18400.4-2010
	Positioning precision	0.008	mm
	Reported positioning precision	0.005	mm
other	size	2400×2100×2300	mm
	weight	3800	kg

Product Description

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems

---
