US$45.00-60.00
|
100 Pieces
(MOQ)
|
Basic Info.
HDMI Format
Yuy2/Yuyv/Mjpeg
Horizontal Resolution
3264*2448
Certification
CE, FCC, CCC, RoHS, ISO9001: 2000
Feature
High Definition, Mini Size, Auto BLC
Effective Distance
10-30m
Resolution
8.0 Megapixels
Free Drive Protocol
USB Video Class(UVC)
Specification
Standard Package Box
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
15.00cm * 15.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

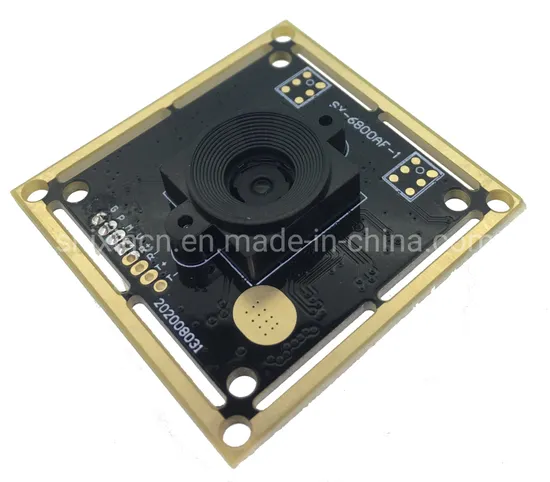

Sony IMX179 High Definition 8.0MP USB Camera 4K Camera Module with Auto Focus used for Portable Scanner, Medical equipment...
Features:
-- USB3.0 High Speed Interface
-- 8MP high resolution, suitable for document capture
-- Advanced Sony image sensor
-- Can match with different angle of Lens
-- Max. resolution reach to 3264x2448 at 15fps
Specifications:
| Module NO. | SX-6800AF-1 |
| Module Size | 38*38mm / 32*32mm |
| Resolution | 3264(H)*2448(V) / 8Megapixel |
| Image Sensor | 1/3.2 inch Sony IMX179 |
| Mini illumination | 0.5Lux |
| Pixel Size | 1.4um |
| Focus | Auto |
| Frame Rate | 15 fps for 3264*2448
15 fps for 2592*1944
30fps for 1920*1080 |
| PCB printing ink | BLACK |
| Video Output | USB 3.0 |
| Power | USB BUS power |
| Power consumption | 1.8W |
| Operating system request | Win 2000,Win XP,Win 7,Win 8 |
| Assembly technique | SMT (ROSH) |
| S/N Ratio | 34dB |
| Dynamic Range | 72.5dB |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUV/MJPG |
| F/No | 3.85mm |
| Temperature (Stable Image) | 0°C to 50°C |
| Temperature (Operation) | 0°C to 50°C |
Factory:
We are the manufacturer of USB Camera, Camera Module, resolution from 0.3mp/1.0mp/1.3mp/2.0mp/3.0mp/5.0mp/8.0mp with high speed USB port.
Compliance with WDM, VFW, TWAIN, UVC protocol.
Support OEM/ODM, Customization.
>>
