High Yield Testliner Paper Making Machine for Capacity 50tpd

Product Description

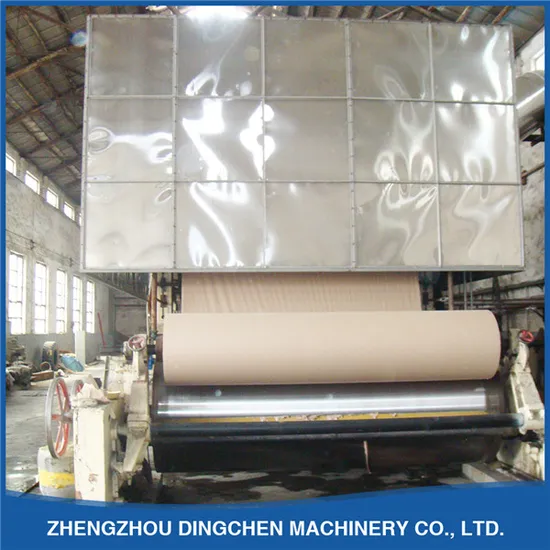

Testliner Paper Making Machine For Capacity 50tpd
Technical parameter

Raw material	waste paper, waste cement packaging paper bag
Output paper	kraft paper, corrugated medium paper, kraft liner paper
Output paper weight	100 - 200gsm
Capacity	50 TD
Net paper width	3200 mm
Copper cylinder width	3700mm
Working speed	150 mmin
Planning working speed	200 m/min
Rail space	4300mm
Drive way	Alternating current frequency conversion adjustable speed ,section drive

Main equipment structure:
1.Cylinder section:Φ1800mm×3700mm×4300mm stainless cylinder mould 3 pcs; Φ600mm×3700mm couch roll 4 pcs, including reverse roll 1 pc; rubber Share hardness is 38ºC±2. Pulp feeding type: through square taper pipe of pressure forming device
2.Press section: Φ800×3700mm×4300mm natural marble roll 2 pcs,Φ750mm×3700mm×4300mm rubber roll 2 pcs, rubber hardness HSD 92ºC±2. pneumatic pressure device.
3.Dryer section: Φ1800mm×3700mm×4300mm alloy dryer can 8 pcs, equiped with dry felt device, blade 8 sets, half closed dryer can exhaust hood 1 set with axial-flow ventilator, induced draft fun, and radiator.
4.Calendar section: 2 rolls in large diameter for soft calendaring.
5.Winding section:Horizontal pneumatic winding machine, roll cylinder in Φ1100mm.

6.Rewinding section: Upper feeding Frame type rewinding machine 1 set.
Company Information Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly! Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.Technical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long time Packaging & Shipping
