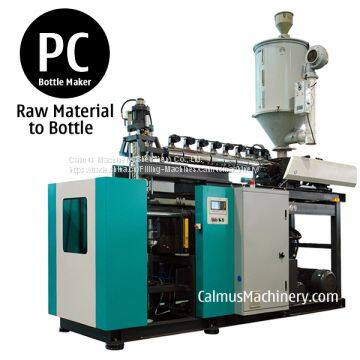

3 Gallon PC Bottle Making Machine | Polycarbonate Bottle Blow Molding Machine
This polycarbonate (PC) bottle blow molding machine is fed with PC resin and designed for making 2-5 gallon bottles with or without handles. The plastic raw material - PC resin direct to bottles, no need of preforms which makes bottles production easier and meanwhile saves cost of preform injection machine. It is an ideal PC bottle making machine.
Type: Raw Material to Bottle (no need of Preforms)
Feed material: Polycarbonate (PC) resin (in granules)
Bottle volume: 3 gallon
Production capacity: 60 pcs/hour (5 gallons)
1) Plasticizing System
Screw Diameter (mm): 85
Ratio of Screw Length/Diameter (L/D): 28
Plasticizing Rate (kg/hr): 80
Injection Stroke (mm): 360
Screw Speed Range (rph): 10-56
2) Clamping System
Clamping Force (kN): 190
Clamping Stroke (mm): 350
Mould Thickness Range (mm): 370-410
Max Opening between Platens (mm): 720
3) Power Consumption
General Power (kW): 84
Hydraulic Motor (kW): 37
Electrical Heating Power (kW): 44
Average Electricals Power Rating (kW): 58
4) Air Source Connection
Required air source pressure: min. 6-10 bar; Air consumption: 0.4M3/min..
5) Water Source Connection
Required water pressure: min. 2-3 bar; Water consumption: 6M3/min.
6) Control System
100-point wall thickness control, 6" colour display.
7) Machine Dimensions
4,985(L) x 1,465(W) x 2,765(H) mm
8) Machine Weight
6 tons (not including hydraulic oil and mould)
9) Production Capacity
>= 60 bottles/hour (based on qualification rate of 98%)
---
What do you need to prepare for making PC (Polycarbonate) Bottles?
PC resin granules in bags. See the following pictures. Simple and the PC resin is easy to buy locally.
Process:
1. Load PC resin in the Hopper of the machine. (The bag picture is for reference only and there are many other brands of PC resin available in the market.)
2. Melt PC resin coming into the mould.
3. Melt PC resin is shaped into a bottle in the mould.
4. The mould is open and take out the bottle.
Very simple. Easy to buy material and easy to operatre.
What kind of bottles does the machine can make?
r
Contact us today for a competitive price.
>>
