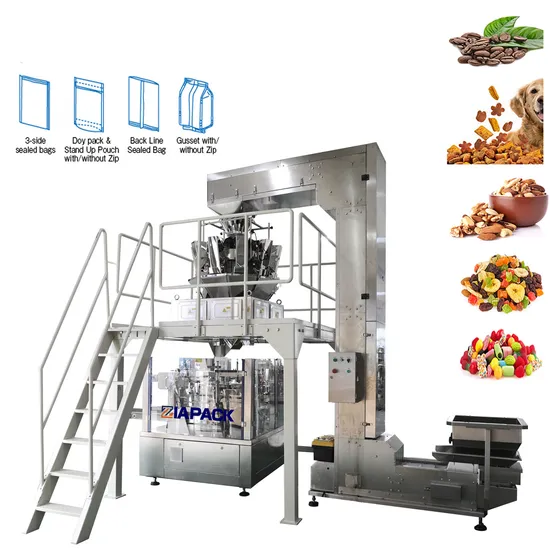

Automatic Pre-Made Pouch Zipper Bag Doy Bag Packaging Machine for Pet Food, Coffee Bean, Candy, Chips with Factory Price

Product Description

Product Description
This unit Suits for powder products
ZL8-230 Rotary bag taking filling sealing packaging machine
This machine can autmatic take the bag ,open the bag ,fill the material and seal the bag .Widely used for packaging different powder material .
1 ,Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2 ,Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3,Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4 ,Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
5 ,Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6 , The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7 ,It match with the glass safty door. At the same time, it could prevent dust.
8 ,Use the plastic bearing, don't need put on oil, less pollution.
9 ,Use no oil vacuum pump, avoid polluting the environment in the production.
10,. The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when open the zipper
11,The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
12,Product or packi ng bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
13,With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Technical parameters

Model	ZL8-200	ZL8-230	ZL8-260	ZL8-300	ZL6-350
Working position	eight-working position
Pouch material	Laminated film & PE film
Pouch pattern	3&4 sides sealing bag ,gusseted bag ,Doy packer with(without) zipper,pillow bag				3&4 size sealing bag pillow bag
Pouch size	W:80-200mm L:110-250mm	W:100-230mm L:150-300mm	W:120-260mm L:150-300mm	W:180-300mm L:200-380mm	W:220-350mm L:200-380mm
Speed	10-35pouches/min(The speed depends on the product status and filling weight))				10-20pouches/min
Weight	1000KGS	1100KGS	1200KGS	1300KGS	1380KGS
Voltage	380V 3phase 50HZ/60HZ
Total power	2KW	2.5KW	3KW	3.8KW	4KW
Compress air	8Bar 0.6m3/min(supply by user)

Packaging & Shipping all finished equipments packed by wooden cases
Company Profile Company introduction :
We are always trust that Be loyal to the quality, benefit the user. Then a company can have a long life
Our main product as follow :
Vertical Bag Forming Filling Sealing Packing Machine
Premade Pouch Filling Packing Machine
Yeast And Coffee Powder Vacuum Packing Machine
Big Bag Bagging Machine
Automatic Bailing Machine
Secondary Packing Machine
Palletizing Production Line
Non-standard Custom-made Packing Machine
Welcome to contact us in any time for get your exclusive packaging solution!

---
