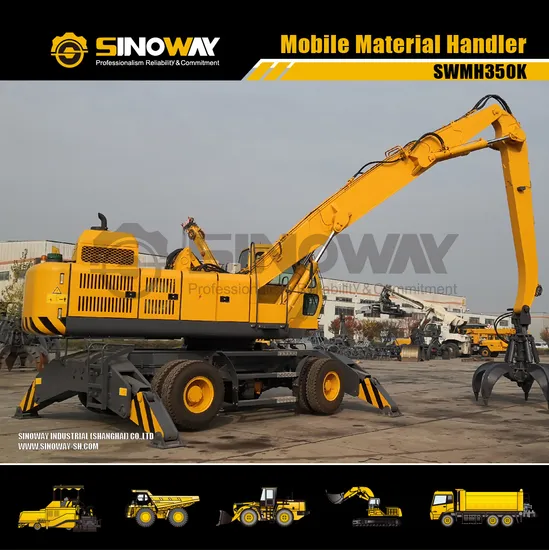

35ton Liebherr Type Scarp Material Handling Excavator for Bulk Grabbing

Product Description

SINOWAY Mobile Handling Equipment
Mobilel waste handlers work in warehouses and production facilities to move products. This might mean finding materials on the shelves and wrapping them and putting them on a delivery truck, or pulling materials off the truck and putting them in the proper shelf spot.
Sinoway SWMH seris wheeled material handler equipment is a mobile handling, stacking and demolition equipment, with a number of advantages. The folding boom is used to overcome the difficulty of the truck crane when the soft rope of the crane is easy to rotate and the operation without the downward pressure, and to overcome the pressure of the truck crane. The more solid stacking boom overcomes the shortcomings of the truck crane when the soft rope of the truck crane is easy to rotate and the work has no downforce and the grasping effect of the more solid materials is poor. It is not enough for the straw picking, wood bamboo waste paper, sand and gravel foam loose soft material to carry out poor picking effect.
Main Advantage
This product has a "double force" system for internal combustion engine and 380V electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; can quickly replace different hydraulic grabs.
The electric operation has over-current and heat-discharge protection devices;
Phase sequence automatic identification to prevent oil pump reversal device;
Hydraulic system power failure, oil self-locking protection device;
There are a number of complex movements during the operation to improve efficiency;
The hydraulic system is equipped with an air-cooled radiator;
The gripper can automatically turn and reversing 360 degrees;
When the electric control room is electrically operated, there is a dual-purpose air conditioning unit.
Product Show

Power
Electrical motor	110kw
Rated speed	1480rpm
Max. swing speed (electrical motor)	5r/min
Diesel engine	154kw
Rated speed	2200rpm
Max. swing speed (diesel engine)	8r/min
Fuel tank capacity	440L
Main Technical Specification
Max. lifting capacity@Min. working radius	13000kg
Max. lifting capacity@Max. working radius	2000kg
Min. working radius	4000mm
Max. working radius	14000mm
Max. lifting moment	52.5t.m
Max. swing torque	107KN.m
Boom length	8000mm
Arm length	6000mm
Main luffing time (Max. speed)
Fall boom (electrical / diesel)	≤17s/≤11s
Rise boom (electrical / diesel)	≤21s/≤11s
Auxiliary luffing time (Max. speed)
Fall boom (electrical / diesel)	≤20s/≤11s
Rise boom (electrical / diesel)	≤9s/≤6s
Outrigger
Fall stretching (electrical / diesel)	≤16s/≤11s
Fall retracting (electrical / diesel)	≤12s/≤10s
Outrigger distance
Lengthways	4500mm
Transversal	4200mm
Travelling System
Max. travelling speed	15km/h
Min. turning radius	7.6m
Max. gradeability	18%
Min. ground clearance	250mm
Max. traction force	109kN
Approach angle	15.0°
Departure angle	15.0°
Braking distance (speed: 15km/h)	≤6.5m
Operating weight	35000kg (including clam shell)
Dimension
A. Overall length	11000mm
B. Overall width	3500mm
C. Overall height	3190mm
D. Wheelbase	3200mm
E. Max. lifting height of cab	5900mm
F. Rear-end length/slewing radius	3650mm
G. Counterweight clearance	1430mm
H. Upper-structure width	2940mm
