Rice/Paddy/Grain and Wheat/Corn Combine Harvester

Product Description

Rice/Paddy/Grain and Wheat/Corn Combine Harvester
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 16 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 12 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
1.Equipped with high-quality engine of 110 horse power, giving a strong driving force;
2.Automatically 270°Hydraulic unloading type to improve working efficiency; Rotary grain tank, easy for maintenance;
3.Equipped with luxury cab with air conditioner;
4.With large cutting width of 2500mm, and 600mm wider paddy field track, better pass ability;
5.Simple operating console, hydraulic chassis driving system.
6.Equipped with double pump and motor, more easy for steering and transmission.
5. Technical parameters
(1) Technical parameters for 4LZ-5.0QC rice & wheat combine harvester

Model			4LZ-4.0ZD
Feeding capacity (kg/s)			4.0
Overall Dimension L*W*H (mm)			5270*2300*2960
Weight(kg)			3150
Working efficiency (hm2/h)			0.3-0.7
Engine
Type			4-cylinder in-line water cooling
Rated Power (hp)			88/95/100
Speed(r/min)			2600
Fuel			Diesel
Fuel tank capacity(L)			160
Fuel Consumption(kg/hm2)			≤32
Drive System
Track		Specification	90 mm× 53section× 500mm
		Track gauge	1250
Minimum Ground Clearance(mm)			325
Transmission			Mechanical(75 gear)+ stepless hydraulic speed regulating (HST)
Number of shifting positions			stepless speed
Walking Speed(km/h)			0-5.8
Cutting
Reel	Type		Eccentric drawing-tooth
	Diameter(mm)		900
Cutting Width(mm)			2000
Blade Width(mm)			2000
Header auger			Spiral blade+Eccentric telescopic rod rack
Grain unloading Part
Grain unloading method			270° hydraulic unloading
Grain Tank(m³)			1.5
Other configuration
Automatic reversing mechanism			Equipped
Dust fan			Equipped
Anti-grass case			Equipped
Belt for main clutch & walking			MISUBUSHI
Bearing			NSK

(2) Technical parameters for 4LZ-5.0QC rice & wheat combine harvester

Model		4LZ-5.0QC
Feed capacity(kg/s)		5.0
Dimension(L*W*H)(mm)		4880*2520*2840
Weight(kg)		2750
Engine
Type		4-cylinder in-line water cooling
Rated power(hp)		88/95/100
Speed(r/min)		2400
Fuel		Diesel
Fuel consumption(kg/hm²)		≤32
Drive system
Track	Specification	90 mm× 52section× 450mm
	Track gauge	1150
Min. ground clearance(mm)		310
Transmission		Mechanical + stepless hydraulic speed regulating (HST)
Number of shifting positions		Stepless speed
Walking speed(km/h)		0-5.8
Cutting
Reel	Type	Eccentric drawing-tooth
	Diameter	900
Cutting width(mm)		2000
Blade width(mm)		2000
Header auger		Spiral blade+Eccentric telescopic rod rack
Grain unloading
Grain unloading method		Hydraulic automatic
Grain Tank(m³)		1.1

(3) Technical parameters for 4LZ-6.0QA rice & wheat combine harvester

Model			4LZ-6.0QA
Feed capacity(kg/s)			6.0
Cabin			Luxurious cab with air conditioning
Weight(kg)			4800
Overall dimension(mm)			5500 x2700x3000mm
Engine	Type		4-cylinder in-line water cooling
	Rated power(kw)		81
	Speed(r/min)		2400
	Fuel		Diesel
	Fuel consumption(kg/hm²)		≤33
Drive system-hydraulic chassis	Track	Specification	90 mm× 60section× 600mm
		Track gauge	1300
	Min. ground clearance(mm)		550
	Transmission		Hydraulic motor
	Number of shifting positions		Stepless speed
	Walking speed(km/h)		0-7.2
Cutting	Reel	Type	Eccentric dial-tooth
		Diameter	900
	Cutting width(mm)		2500
	Blade width(mm)		2500
	Header auger		Spiral blade+Eccentric telescopic rod rack
Grain unloading part	Grain unloading method		270° hydraulic unloading type
	Grain Tank(m³)		1.5(Hydraulic)

6. Photos

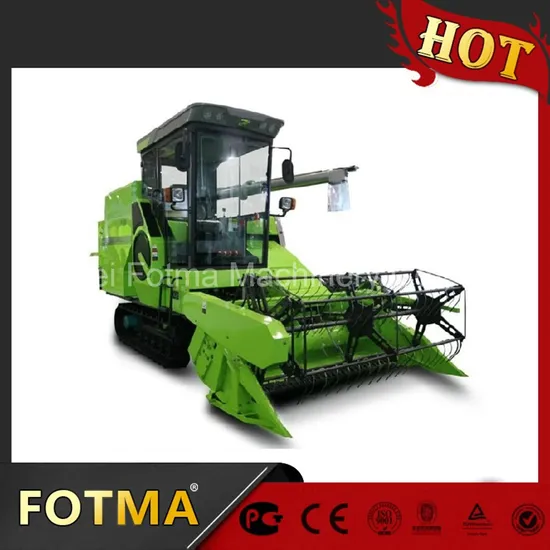

(1) Photos for 4LZ-4.0ZD rice & wheat combine harvester
(2) Photos for 4LZ-5.0QC rice & wheat combine harvester
(3) Photos for 4LZ-6.0QA rice & wheat combine harvester
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipping
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.

---
