High Precision Gnss Surveying Instrument Android GPS Controller U18

Product Description

Product Description
The Thunder industrial handheld,integrated a dedicated GNSS receiving board, a combination of
connectivity options and standard features,including DB9 series port, LRBT,NFC,WIFI,and 3G, provides entire solutions for high-accuracy GIS applications. The fully-rugged IP rate is designed for field use.The Thunder industrial handheld come ready for you with application possibilities in power companies, agriculture and geological industries,forestry,field service and GIS/surveying.

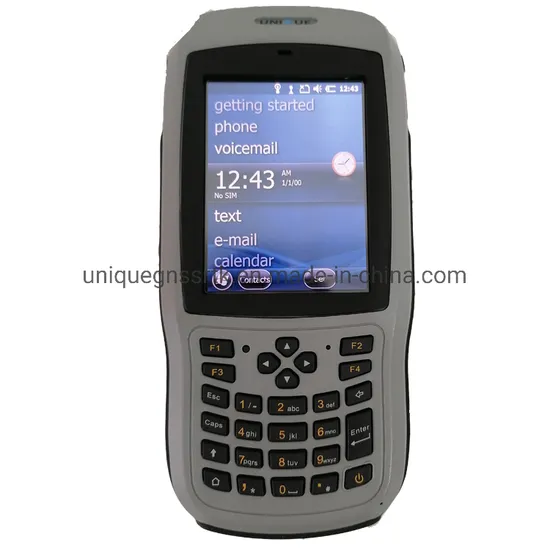

Detailed Photos
Specification

Model U18
Overview
Processor	1GHZ
ROM	1GB
RAM	512M
Operation system	Windows Embedded Handheld
Camera	5 mega pixel
Keypad	27 numeric+programmable keys
Display	3.7″ sunlight readable with integrated touch screen 480*640
Dimension	200mm×96mm×32mm
Weight	515g with battery
GNSS Performance
GNSS	GPS L1+ GLONASS L1
Channels	167
Accuracy (Internal Accord accuracy)
Autonomous	3m
SBAS	2.5m
Communications and Data Storage
WIFI	Yes
USB port	Type B USB
Serial port	DB9
Storage extension	TF card, up to 32GB
Long range Bluetooth	Optional (along with standard bluetooth)
Bluetooth2.1 class II	V2.1
Datalink	3G (WCDMA)
Power
DC input	DC 5V, 1A
Detachable Li-ion battery	6500mAh, 3.7V
Environment specifications
Operationg temperature	-20°C~+60°C
Storage temperature	-30°C~+70°C
Sand,dust&water	IP65
Drop	1.2m protection
Accessory
Standard accessory	DC adapter, USB cable, Serial cable, Battery, Strap with Stylus, Screen protection film and User guid (Electronic Edition)
Optional accessory	Mounting bracket and Pole (Claw) Clamp, External GNSS antenna, External antenna cable
Supported Software
Supported Software	SurvCE, Field Genius, SuperPad

After Sales Service
The warranty period is 12 months. Within the 12 months, if there is any fault caused by non-artificial reason, which can be repaired by the customer themselves, we can offer the spare parts to the customer free of charge. If there is any problem which cannot be repaired by the customer themselves, the customer can resent the products to our factory for repairing free of charge, and the freight charge would be shared by the customer and our company two sides.Under the circumstances out of the warranty period, if there is any problem, we can repair free of charge for the customers, we just charge for the spare parts at the cost itself, and the freight charge would be bear by the customers.
If there is any problem caused by human reason within the first year, the service would be the same as the service out of thewarranty period. Packaging

FAQ
1.What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:
30% deposit in advance, 70% balance against the copy of B/L.
6.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction
7.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
8.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
