Product Details
Product Description
Product Description
characteristic
DCS-Control ™ Topology technology
Input voltage range is 3V to 17V
Output current up to 500mA
Adjustable output voltage range is 0.9V to 6V
Fixed output voltage version
Seamless power saving mode conversion
Typical value of quiescent current is 17 µ A
Normal power output
100% duty cycle mode
Short circuit protection
Overheating protection
Compatible with TPS62160 and TPS62125 pins
2mm x 2mm, 8-pin wafer level small form factor leadless (WSON) package
Use TPS62170 and WEBENCH together ® Power Designer Create Custom Design Scheme

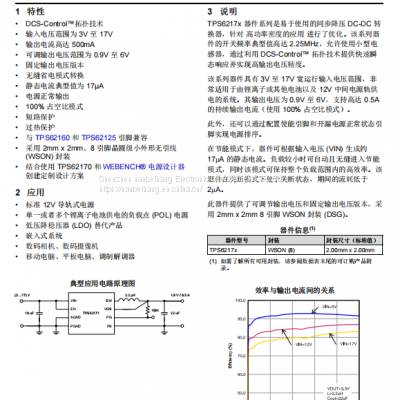

Description of TPS62172
The TPS6217x device family is an easy-to-use synchronous buck DC-DC converter optimized for high power density applications. The typical switching frequency of this series of devices is as high as 2.25MHz, allowing the use of small inductors ™ Topology technology provides fast transient response and high output voltage accuracy.
This series of devices has a wide operating input voltage range of 3V to 17V, which is very suitable for systems powered by lithium ion or other batteries and 12V intermediate power rails. Its output voltage is 0.9V to 6V, supporting continuous output current up to 0.5A (using 100% duty cycle mode).
In addition, power sequencing can be realized by configuring enable pin and open drain power normal state pin.
In the energy-saving mode, the device can generate a quiescent current of about 17 µ A according to the input voltage (VIN). When the load is small, the energy-saving mode can be automatically and seamlessly entered, while the mode can maintain high efficiency throughout the load range. The device is in the off state in the off mode, during which the current loss is less than 2 µ A.
The device is available in adjustable and fixed output voltage versions in a 2mm x 2mm 8-pin WSON package (DSG).
application
Standard 12V rail mounted power supply
Single or multiple lithium ion battery powered load point (POL) power supply
Low drop voltage regulator (LDO) substitute
Embedded system
Digital camera
Mobile PC, tablet PC, modem
>>
