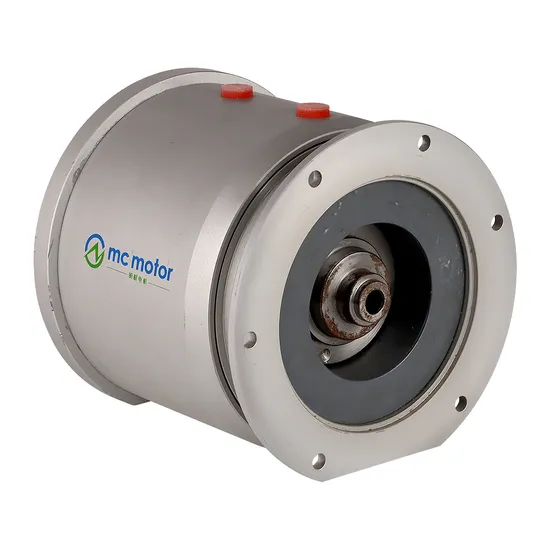

5kw 8kw 21000rpm Pmsm High Speed High Efficiency Electric Synchronous Motor

Product Description

3kw 5kw 8kw 21000rpm Pmsm Synchronous High Speed High Efficiency Electric Motor Water Cooling Product Description Product Feature
1.Suitable for the 12000---21000rpm rated speed
2.High power & high torque
3.High efficiency
4.Small size
5.Low noise low vibration
6.Patented cooling structure
7.Easy maintenance and long life time
8.Durable, reliable
Specifications
Model type:SRPM112H4W5
Voltage: 380V AC
Rated Power:1-10KW
Rated speed: 20000rpm--24000rpm
Isolation: H/F
Water/dust Proof: IP54(IP67 option)
Cooling Method: Water
Installation Method: B35
Application
High-speed Compressors,Fans,Pumps
Company Profile
Main Motor Range
The Case for the Projects
Our Advantages
Certifications Packaging & Shipping
More Motors

Motor type	Voltage	Rated power	Rated torque (N.m)	Rated speed	Efficiency	Insulation	Ingress protection	Pole Number	PIC	Weight	Cooling Method	Position Signal	Duty Type	Installation Method
	(V AC)	(kW)		(rpm)	(%)					(kg)
SPRM( General)	380	5.5-110	10-420	10000-80000	95.00%	H/F	IP54/IP67	8		19-112	Water	Resolver	S1-S9	B35
SPRM( General)	380	4-37	35-463	15000-24000	95.00%	H/F	IP54/IP67	8		14-100	Air	N/A	S1-S9	B35
SPRM( General)	380	37-350	35-463	12000-24000	95.00%	H/F	IP54/IP67	8		14-25	Oil	N/A	S1-S9	B35
SRPM112H4F7.5C	380	7.5	3.4	21000	95	H/F	IP54	4		12	Air	N/A	S1-S9	B35
SRPM112H4F7.5C	380	7.5	3	24000	95	H/F	IP54	4		12	Air	N/A	S1-S9	B35
SRPM112H4F15F	380	15	6	24000	95	H/F	IP54	4		20	Air	N/A	S1-S9	B35
SRPM112H4F18.5	380	18.5	8.41	21000	95	H/F	IP54	4		25	Air	N/A	S1-S9	B35
SRPM180L8F18.5	380	18.5	33.3	5300	95	H/F	IP54	8		25	Air	N/A	S1-S9	B35
SRPM130H4F22	380	22	10	21000	95	H/F	IP54	4		33	Air	N/A	S1-S9	B35
SRPM130H4F37	380	37	19.63	18000	95	H/F	IP54	4		47	Air	N/A	S1-S9	B35
SRPM168H2F75C	380	75	21.07	34000	95	H/F	IP54	2		50	Air	N/A	S1-S9	B35
SRPM112H4F15	380	15	5.96	24000	96.5	H/F	IP54	4		12	Air/Water	N/A	S1-S9	B35
SRPM112H4W5.5	380	10	2.5	21000	94	H/F	IP67	4		14	Water	N/A	S1-S9	B35
SRPM112H4W10	380	10	8	12000	94	H/F	IP67	4		20	Water	N/A	S1-S9	B35
SRPM112H4W20	380	20	8	24000	96.5	H/F	IP54	4		25	Water	N/A	S1-S9	B35
SRPM112H4W22B	380	22	8.75	24000	96.5	H/F	IP54	4		25	Water	N/A	S1-S9	B35
SRPM112H4W25	380	25	15.9	15000	96.5	H/F	IP54	4		28	Water	N/A	S1-S9	B35
SRPM112H4W30	380	30	17.9	16000	96.5	H/F	IP54	4		32	Water	N/A	S1-S9	B35
SRPM210M4W55B	380	55	52.5	10000	95.4	H/F	IP54	4		55	Water	N/A	S1-S9	B35
SRPM210H4W60	380	60	45.8	12500	96.5	H/F	IP54	4		80	Water	N/A	S1-S9	B35
SRPM210M4W75C	380	75	71.6	10000	96.5	H/F	IP54	4		95	Water	N/A	S1-S9	B35,V1
SRPM130H4W20	380	20	3.3	60000	95.00%	H/F	IP54/IP67	4		45	Water	N/A	S1-S9	B35
SRPM95H2W18	380	18	0.667	75000	95.00%	H/F	IP54/IP67	2		45	Water	N/A	S1-S9	B35
SRPM95H2W5.5	380	5.5	2.29	80000	95.00%	H/F	IP54/IP67	2		25	Water	N/A	S1-S9	B35
SRPM180M8O30	380	30	23.8	12000	96.5	H/F	IP67	8		12	Water/Oil	N/A	S1-S9	B35
SRPM165H4XO37	380	37	17.7	20000	96.50%	H/F	IP54/IP67	4		100	Oil	N/A	S1-S9	B35
SRPM214H4O50	380	50	19.9	24000	95.00%	H/F	IP54/IP67	4		100	Oil	N/A	S1-S9	B35
SRPM214H4O75	380	75	29.8	24000	95.00%	H/F	IP54/IP67	4		120	Oil	N/A	S1-S9	B35
SRPM214H4O100	380	100	39.8	24000	95.00%	H/F	IP54/IP67	4		150	Oil	N/A	S1-S9	B35
SRPM214H4O124	380	124	66	18000	95.00%	H/F	IP54/IP67	4		250	Oil	N/A	S1-S9	B35
SRPM160H4XO90	380	90	43	20000	96.5	H/F	IP67	4		48	Oil	N/A	S1-S9	B35
SRPM205H4XO110	380	110	52.5	20000	96.5	H/F	IP67	4		76	Oil	N/A	S1-S9	B35
SRPM205H4XO160	380	160	76.4	20000	96.5	H/F	IP67	4		86	Oil	N/A	S1-S9	B35
SRPM205H4XO200	380	200	95.5	15500	95.5	H/F	IP67	4		350	Oil	N/A	S1-S9	B35
SRPM205H4O220	380	200	131.1	16000	95.5	H/F	IP67	4		310	Oil	N/A	S1-S9	B35
SRPM290H4O350	380	350	167.1	20000	95.5	H/F	IP67	4		530	Oil	N/A	S1-S9	B35

Other motors you will be interested in

Motor type	Voltage (V AC)	Rated power (kW)	Rated torque (N.m)	Rated speed (rpm)	Efficiency (%)	Service Factor	Insulation	Ingress protection	Pole Number	Weight (kg)	Cooling Method	Position Signal	Installation Method
SRPM151M8XW11	380	11	11	9600	96	S1	H/F	IP67	8	10	Oil circulation	Resolver	B35
SRPM205M8XO45	380	45	36	12000	96.3	S1	H/F	IP67	8	35	Oil circulation	Resolver	B35
SRPM205M8XO55	380	55	43.8	12000	96.3	S1	H/F	IP67	8	38	Oil circulation	Resolver	B35
SRPM205M8XO75	380	75	59.7	12000	96.5	S1	H/F	IP67	8	43	Oil circulation	Resolver	B35
SRPM205M8XO90	380	90	71.6	12000	96.5	S1	H/F	IP67	8	47	Oil circulation	Resolver	B35
SRPM205M8XO110	380	110	87.6	12000	96.5	S1	H/F	IP67	8	75	Oil circulation	Resolver	B35
SRPM205M8XO132	380	132	105	12000	96.5	S1	H/F	IP67	8	80	Oil circulation	Resolver	B35
SRPM205M8XO160	380	160	127.3	12000	96.5	S1	H/F	IP67	8	87	Oil circulation	Resolver	B35
SRPM205M8XO185	380	185	147.2	12000	96.5	S1	H/F	IP67	8	95	Oil circulation	Resolver	B35

FAQ
1. Can performanent magnet synchronous motor be used as generator? Yes. Permanent magnet synchronous motor can work as a generator because of its special working theory. If it runs CW as a motor, then runs CCW as a generator. But please kindly note, if when you want to work it as a generator, you need to change a suitable motor controller with AFE function
2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.

3. Any special technical request on this motor's VFD driver? And Do you have such driver?
Permanent magnet synchronous motor's driver should be vector control VFD with special inner software, such as Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series, etc.. Yes, our MH300 series VFD matches with this motor.

4. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.

5. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation

---
